Film Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

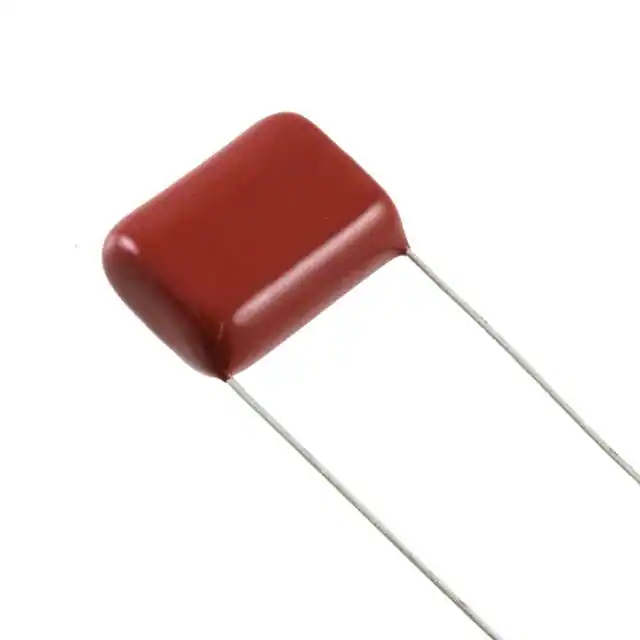

QXP2J473KRPTCAP FILM 0.047UF 10% 630VDC RAD |
109 | - |
|
Datasheet |
Radial | Bulk | QXP | Active | 0.047 µF | ±10% | 200V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.827 L x 0.264 W (21.00mm x 6.70mm) | 0.508 (12.90mm) | PC Pins | 0.689 (17.50mm) | High Frequency, Switching | - |
|
ECW-F4433JLCAP FILM 0.043UF 5% 400VDC RAD |
639 | - |
|
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.043 µF | ±5% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.492 L x 0.236 W (12.50mm x 6.00mm) | 0.406 (10.30mm) | PC Pins | 0.394 (10.00mm) | High Frequency, Switching | - |
|
QXT2G103KRPTCAP FILM 10000PF 10% 400VDC RAD |
299 | - |
|
Datasheet |
Radial | Bulk | QXT | Active | 10000 pF | ±10% | 200V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.748 L x 0.213 W (19.00mm x 5.40mm) | 0.567 (14.40mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
|

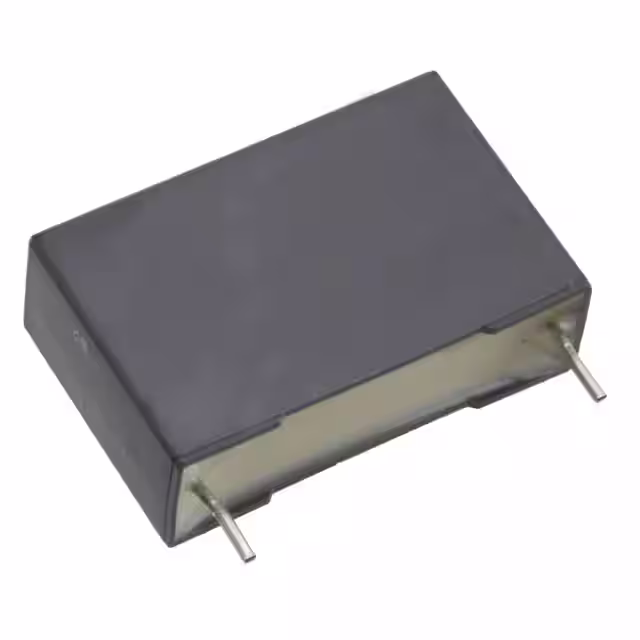

R46KN347000M1MCAP FILM 0.47UF 20% 560VDC RAD |
458 | - |
|
Datasheet |
Radial | Bulk | R46 | Active | 0.47 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | - | - | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression | X2 |
|
ECQ-UAAF125KCAP FILM 1.2UF 10% 275VAC RADIAL |
250 | - |
|
Datasheet |
Radial | Bulk | ECQ-UA | Active | 1.2 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.220 L x 0.472 W (31.00mm x 12.00mm) | 0.886 (22.50mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression | X2 |
|

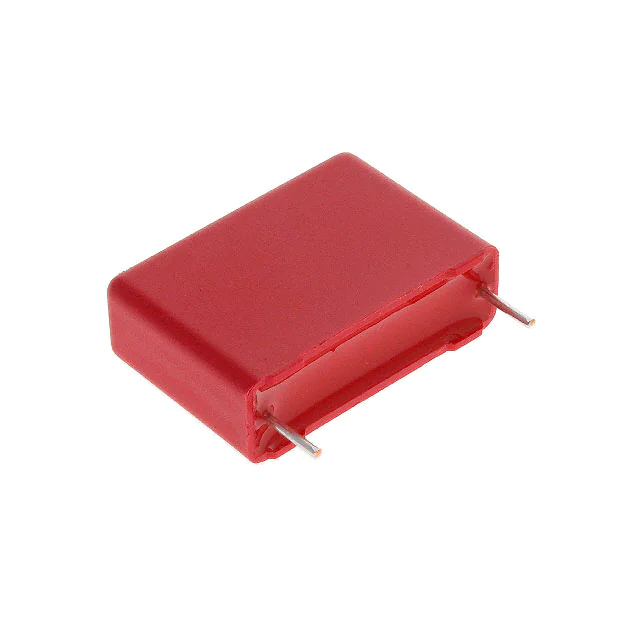

MKP1U023305F00KSSDCAP FILM 0.033UF 10% 2KVDC RAD |
613 | - |
|
Datasheet |
Radial | Bulk | - | Active | 0.033 µF | ±10% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.043 L x 0.335 W (26.50mm x 8.50mm) | 0.728 (18.50mm) | PC Pins | 0.886 (22.50mm) | High Pulse, DV/DT | - |
|
R75QN31504000JCAP FILM 0.15UF 5% 1KVDC RADIAL |
345 | - |
|
Datasheet |
Radial | Bulk | R75 | Active | 0.15 µF | ±5% | 250V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043 L x 0.394 W (26.50mm x 10.00mm) | 0.732 (18.60mm) | PC Pins | 0.886 (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 |
|
ECQ-E6394JFCAP FILM 0.39UF 5% 630VDC RADIAL |
184 | - |
|
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.39 µF | ±5% | 250V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.335 W (26.00mm x 8.50mm) | 0.744 (18.90mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
|

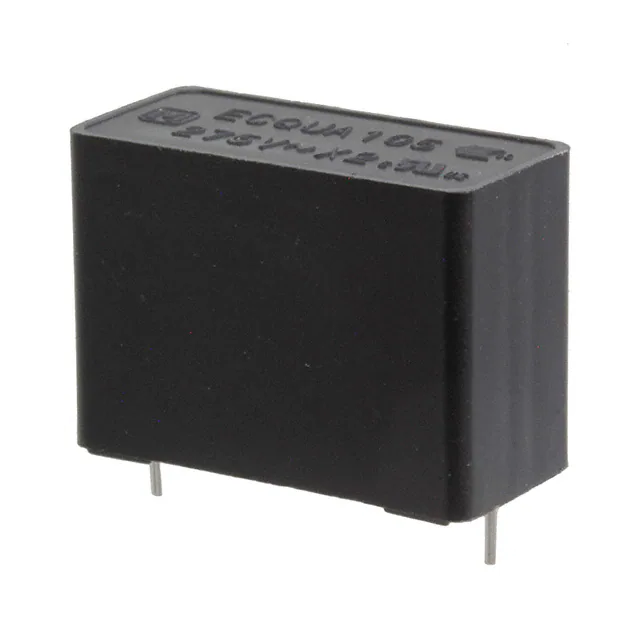

ECQ-UAAF105SACAP FILM 1UF 20% 275VAC RAD |
899 | - |
|
Datasheet |
Radial | Bulk | ECQ-UA | Active | 1 µF | ±20% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024 L x 0.472 W (26.00mm x 12.00mm) | 0.768 (19.50mm) | PC Pins | 0.886 (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 |
|
168472J100A-FCAP FILM 4700PF 5% 100VDC RADIAL |
849 | - |
|
Datasheet |
Radial | Bulk | 168 | Active | 4700 pF | ±5% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.283 L x 0.098 W (7.20mm x 2.50mm) | 0.256 (6.50mm) | PC Pins | 0.197 (5.00mm) | General Purpose | - |
|
PHE840EB6470MB16R17CAP FILM 0.47UF 20% 760VDC RAD |
126 | - |
|
Datasheet |
Radial | Bulk | PHE840E | Active | 0.47 µF | ±20% | 300V | 760V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709 L x 0.433 W (18.00mm x 11.00mm) | 0.748 (19.00mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression | X2 |
|
890324026027CSCAP FILM 1UF 10% 275VAC RADIAL |
2,352 | - |
|
Datasheet |
Radial | Bulk | WCAP-FTX2 | Active | 1 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.433 W (26.00mm x 11.00mm) | 0.807 (20.50mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression | X2 |
|

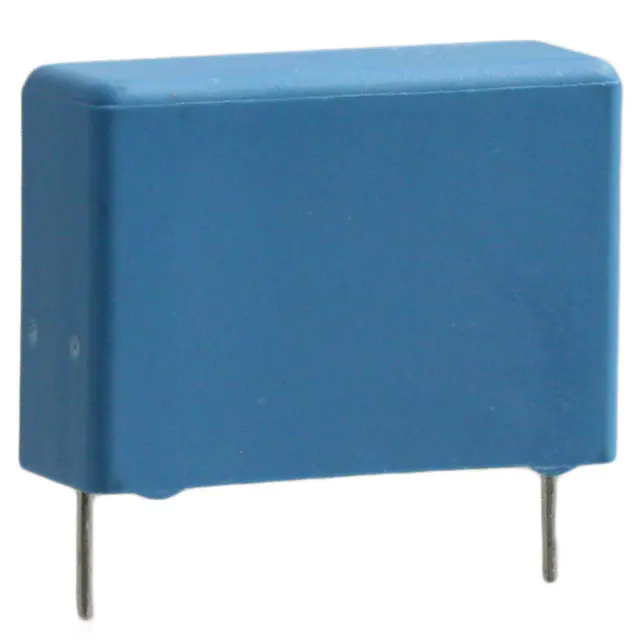

PHE840MD6470MD15R06L2CAP FILM 0.47UF 20% 760VDC RAD |
516 | - |
|
Datasheet |
Radial | Bulk | PHE840M | Active | 0.47 µF | ±20% | 275V | 760V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024 L x 0.354 W (26.00mm x 9.00mm) | 0.728 (18.50mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression | X2 |
|
|
ECW-F6123JLCAP FILM 0.012UF 5% 630VDC RAD |
414 | - |
|
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.012 µF | ±5% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.492 L x 0.217 W (12.50mm x 5.50mm) | 0.386 (9.80mm) | PC Pins | 0.394 (10.00mm) | High Frequency, Switching | - |
|
|
ECW-F6113JLCAP FILM 0.011UF 5% 630VDC RAD |
314 | - |
|
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.011 µF | ±5% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.492 L x 0.213 W (12.50mm x 5.40mm) | 0.382 (9.70mm) | PC Pins | 0.394 (10.00mm) | High Frequency, Switching | - |
|
|
ECW-F6153JLCAP FILM 0.015UF 5% 630VDC RAD |
200 | - |
|
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.015 µF | ±5% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.492 L x 0.232 W (12.50mm x 5.90mm) | 0.402 (10.20mm) | PC Pins | 0.394 (10.00mm) | High Frequency, Switching | - |
|
|
ECW-F6133JLCAP FILM 0.013UF 5% 630VDC RAD |
140 | - |
|
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.013 µF | ±5% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.492 L x 0.220 W (12.50mm x 5.60mm) | 0.394 (10.00mm) | PC Pins | 0.394 (10.00mm) | High Frequency, Switching | - |
|
R46KN347000P1KCAP FILM 0.47UF 10% 560VDC RAD |
794 | - |
|
Datasheet |
Radial | Bulk | R46 | Active | 0.47 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043 L x 0.236 W (26.50mm x 6.00mm) | 0.594 (15.10mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression | X2 |
|

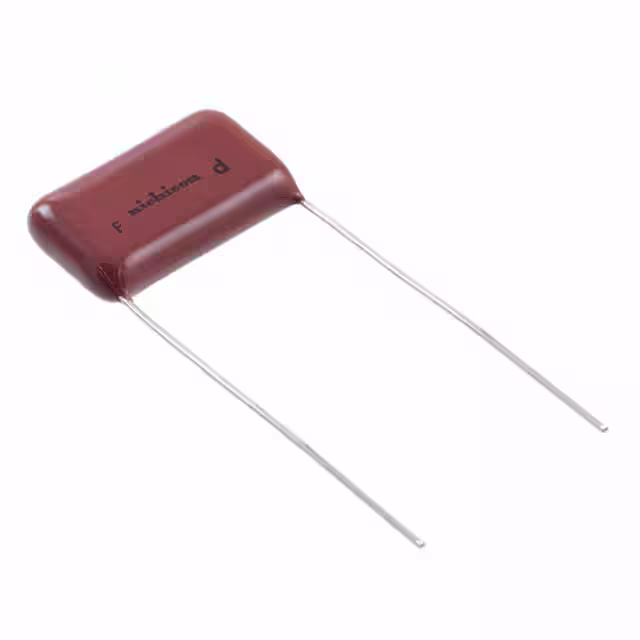

QXP2J683KRPTCAP FILM 0.068UF 10% 630VDC RAD |
691 | - |
|
Datasheet |
Radial | Bulk | QXP | Active | 0.068 µF | ±10% | 200V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.827 L x 0.280 W (21.00mm x 7.10mm) | 0.587 (14.90mm) | PC Pins | 0.689 (17.50mm) | High Frequency, Switching | - |
|
PHE820ED6150MR06L2CAP FILM 0.15UF 20% 300VAC RAD |
459 | - |
|
Datasheet |
Radial | Bulk | PHE820 | Active | 0.15 µF | ±20% | 300V | - | Polyester, Metallized | - | -40°C ~ 100°C | Through Hole | 1.024 L x 0.315 W (26.00mm x 8.00mm) | 0.630 (16.00mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression | X2 |
