Film Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Series Straight 26x11.jpg)
|
ECW-FA2J125JCAP FILM 1.2UF 5% 630VDC RADIAL |
320 | - |
|
Datasheet |
Radial | Bulk | ECW-F(A) | Active | 1.2 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.476 W (26.00mm x 12.10mm) | 0.677 (17.20mm) | PC Pins | 0.886 (22.50mm) | High Frequency, Switching | - |
|
PFR5682J63J11L4BULKCAP FILM 6800PF 5% 63VDC RADIAL |
999 | - |
|
Datasheet |
Radial | Bulk | PFR | Active | 6800 pF | ±5% | 40V | 63V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283 L x 0.177 W (7.20mm x 4.50mm) | 0.236 (6.00mm) | PC Pins | 0.197 (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - |
|

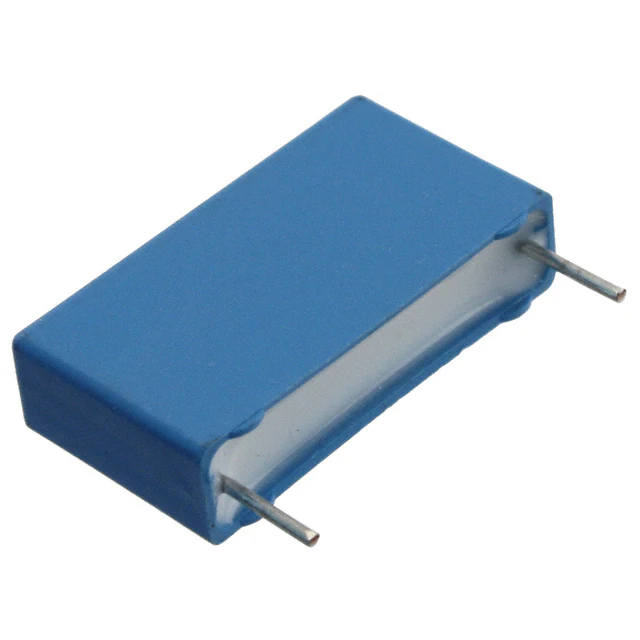

PHE840MD6220KD13R06L2CAP FILM 0.22UF 10% 760VDC RAD |
946 | - |
|
Datasheet |
Radial | Bulk | PHE840M | Active | 0.22 µF | ±10% | 275V | 760V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024 L x 0.256 W (26.00mm x 6.50mm) | 0.571 (14.50mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression | X2 |
|
R76UN239050H4JCAP FILM 0.039UF 5% 2KVDC RAD |
844 | - |
|
Datasheet |
Radial | Bulk | R76 | Active | 0.039 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 49 mOhms | -55°C ~ 125°C | Through Hole | 1.043 L x 0.394 W (26.50mm x 10.00mm) | 0.732 (18.60mm) | PC Pins | 0.886 (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 |
|
ECQ-E6334JFCAP FILM 0.33UF 5% 630VDC RADIAL |
809 | - |
|
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.33 µF | ±5% | 250V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.307 W (26.00mm x 7.80mm) | 0.709 (18.00mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
|
R60MI41005030KCAP FILM 1UF 10% 400VDC RADIAL |
683 | - |
|
Datasheet |
Radial | Bulk | R60 | Active | 1 µF | ±10% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709 L x 0.433 W (18.00mm x 11.00mm) | 0.752 (19.10mm) | PC Pins | 0.591 (15.00mm) | Automotive | AEC-Q200 |
|
|
R60MI41004030KCAP FILM 1UF 10% 400VDC RADIAL |
291 | - |
|
Datasheet |
Radial | Bulk | R60 | Active | 1 µF | ±10% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709 L x 0.433 W (18.00mm x 11.00mm) | 0.752 (19.10mm) | PC Pins | 0.591 (15.00mm) | Automotive | AEC-Q200 |
|

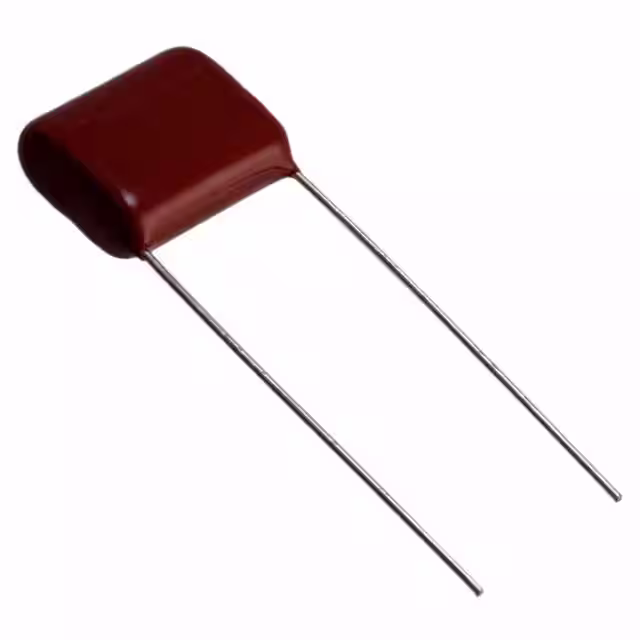

QXK2G224KTPCAP FILM 0.22UF 10% 400VDC RAD |
154 | - |
|
Datasheet |
Radial | Bulk | QXK | Active | 0.22 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728 L x 0.232 W (18.50mm x 5.90mm) | 0.559 (14.20mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
|
PFR5472J100J12L4BULKCAP FILM 4700PF 5% 100VDC RADIAL |
330 | - |
|
Datasheet |
Radial | Box | PFR | Active | 4700 pF | ±5% | 63V | 100V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283 L x 0.217 W (7.20mm x 5.50mm) | 0.276 (7.00mm) | PC Pins | 0.197 (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - |
|
|
R76QN282050H3JCAP FILM 0.08UF 5% 1KVDC RAD |
192 | - |
|
Datasheet |
Radial | Bulk | R76 | Active | 0.08 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 31 mOhms | -55°C ~ 125°C | Through Hole | 1.043 L x 0.394 W (26.50mm x 10.00mm) | 0.732 (18.60mm) | PC Pins | 0.886 (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 |
|
PHE450KB6100JR06CAP FILM 0.1UF 5% 400VDC RADIAL |
398 | - |
|
Datasheet |
Radial | Bulk | PHE450 | Active | 0.1 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709 L x 0.256 W (18.00mm x 6.50mm) | 0.492 (12.50mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
|
ECW-HC3F822JDCAP FILM 8200PF 5% 3KVDC RADIAL |
320 | - |
|
Datasheet |
Radial | Bulk | ECW-H(C) | Active | 8200 pF | ±5% | 1060V (1.06kV) | 3000V (3kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.016 L x 0.295 W (25.80mm x 7.50mm) | 0.602 (15.30mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
|
R46KI3470JH02MCAP FILM 0.47UF 20% 560VDC RAD |
854 | - |
|
Datasheet |
Radial | Bag | R46 | Active | 0.47 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709 L x 0.295 W (18.00mm x 7.50mm) | 0.732 (18.60mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression | X2 |
-Series.jpg)
|
ECW-FD2W395KCAP FILM 3.9UF 10% 450VDC RADIAL |
497 | - |
|
Datasheet |
Radial | Bulk | ECW-F(D) | Active | 3.9 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.996 L x 0.421 W (25.30mm x 10.70mm) | 0.606 (15.40mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
ECW-FE2W335P5CAP FILM 3.3UF 5% 450VDC RADIAL |
286 | - |
|
Datasheet |
Radial | Bulk | ECWFE | Active | 3.3 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.220 L x 0.512 W (31.00mm x 13.00mm) | 0.925 (23.50mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|

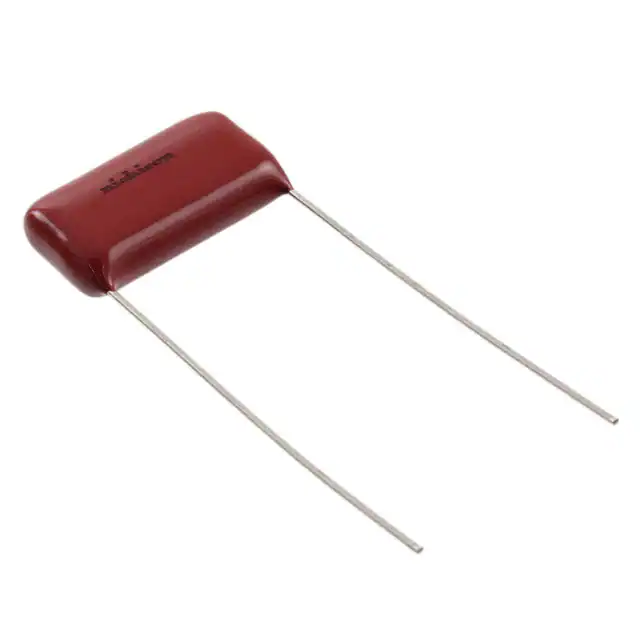

QXK2E474KTPTZHCAP FILM 0.47UF 10% 250VDC RAD |
227 | - |
|
Datasheet |
Radial | Bulk | QXK-ZH | Active | 0.47 µF | ±10% | 125V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.807 L x 0.264 W (20.50mm x 6.70mm) | 0.508 (12.90mm) | PC Pins | 0.689 (17.50mm) | General Purpose | - |
|
890334026027CSCAP FILM 1UF 10% 310VAC RADIAL |
731 | - |
|
Datasheet |
Radial | Bulk | WCAP-FTXX | Active | 1 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.433 W (26.00mm x 11.00mm) | 0.807 (20.50mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression | X2 |
|
R46KR368040M1MCAP FILM 0.68UF 20% 560VDC RAD |
663 | - |
|
Datasheet |
Radial | Tray | R46 | Active | 0.68 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260 L x 0.354 W (32.00mm x 9.00mm) | 0.673 (17.10mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression | X2 |
|
|
R46KR34704001MCAP FILM 0.47UF 20% 560VDC RAD |
408 | - |
|
Datasheet |
Radial | Tray | R46 | Active | 0.47 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260 L x 0.354 W (32.00mm x 9.00mm) | 0.673 (17.10mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression | X2 |
|
ECQ-UAAF125MCAP FILM 1.2UF 20% 275VAC RADIAL |
145 | - |
|
Datasheet |
Radial | Bulk | ECQ-UA | Active | 1.2 µF | ±20% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.220 L x 0.472 W (31.00mm x 12.00mm) | 0.886 (22.50mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression | X2 |
