Trimmers, Variable Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | CapacitanceRange | AdjustmentType | Voltage-Rated | DielectricMaterial | Q@Freq | Size/Dimension | Height-Seated(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

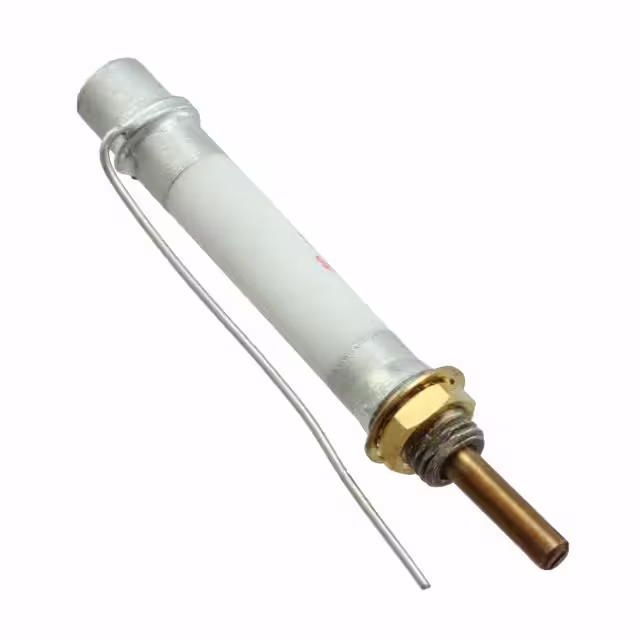

SGNMNC1103EKCAP TRIM 1-10PF 3000V CHAS MNT |
2,051 | - |
|
Datasheet |
Bulk | SGNM-Series 1 | Obsolete | 1 ~ 10pF | - | 3000 V | Ceramic | 1700 @ 25MHz | 0.270 Dia (6.86mm) | - | -55°C ~ 125°C | Chassis Mount |
|
|
SGNMNC1106EKCAP TRIM 1-10PF 6000V CHAS MNT |
2,039 | - |
|
Datasheet |
Bulk | SGNM-Series 1 | Obsolete | 1 ~ 10pF | - | 6000 V | Ceramic | 1700 @ 25MHz | 0.270 Dia (6.86mm) | - | -55°C ~ 125°C | Chassis Mount |
|
|
SGNMNC1108EKCAP TRIM 1-10PF 7500V CHAS MNT |
2,042 | - |
|
Datasheet |
Bulk | SGNM-Series 1 | Obsolete | 1 ~ 10pF | - | 7500 V | Ceramic | 1700 @ 25MHz | 0.270 Dia (6.86mm) | - | -55°C ~ 125°C | Chassis Mount |
|
|
SGNMNC1152EKCAP TRIM 1-15PF 2000V CHAS MNT |
2,095 | - |
|
Datasheet |
Bulk | SGNM-Series 1 | Obsolete | 1 ~ 15pF | - | 2000 V | Ceramic | 1500 @ 25MHz | 0.270 Dia (6.86mm) | - | -55°C ~ 125°C | Chassis Mount |
|
|
SGNMNC1156EKCAP TRIM 1.5-15PF 6000V CHAS MNT |
2,347 | - |
|
Datasheet |
Bulk | SGNM-Series 1 | Obsolete | 1.5 ~ 15pF | - | 6000 V | Ceramic | 1500 @ 25MHz | 0.270 Dia (6.86mm) | - | -55°C ~ 125°C | Chassis Mount |
|
|
SGNMNC1206EKCAP TRIM 2-20PF 6000V CHAS MNT |
3,449 | - |
|
Datasheet |
Bulk | SGNM-Series 1 | Obsolete | 2 ~ 20pF | - | 6000 V | Ceramic | 1500 @ 25MHz | 0.270 Dia (6.86mm) | - | -55°C ~ 125°C | Chassis Mount |
|
SGNMNC2156EKCAP TRIM 1.5-15PF 6000V CHAS MNT |
2,206 | - |
|
Datasheet |
Bulk | SGNM-Series 2 | Obsolete | 1.5 ~ 15pF | - | 6000 V | Ceramic | 2000 @ 25MHz | 0.550 Dia (13.97mm) | - | -55°C ~ 125°C | Chassis Mount |
|
|
SGNMNC2206EKCAP TRIM 2-20PF 6000V CHAS MNT |
2,682 | - |
|
Datasheet |
Bulk | SGNM-Series 2 | Obsolete | 2 ~ 20pF | - | 6000 V | Ceramic | 1500 @ 25MHz | 0.550 Dia (13.97mm) | - | -55°C ~ 125°C | Chassis Mount |
|
|
SGNMNC2236EKCAP TRIM 2-23PF 6000V CHAS MNT |
2,790 | - |
|
Datasheet |
Bulk | SGNM-Series 2 | Obsolete | 2 ~ 23pF | - | 6000 V | Ceramic | 1200 @ 25MHz | 0.550 Dia (13.97mm) | - | -55°C ~ 125°C | Chassis Mount |
|
|
SGNMNC2256EKCAP TRIM 3-25PF 6000V CHAS MNT |
3,907 | - |
|
Datasheet |
Bulk | SGNM-Series 2 | Obsolete | 3 ~ 25pF | - | 6000 V | Ceramic | 1200 @ 25MHz | 0.550 Dia (13.97mm) | - | -55°C ~ 125°C | Chassis Mount |
|
|
SGNMNC2306EKCAP TRIM 3-30PF 6000V CHAS MNT |
3,164 | - |
|
Datasheet |
Bulk | SGNM-Series 2 | Obsolete | 3 ~ 30pF | - | 6000 V | Ceramic | 600 @ 25MHz | 0.550 Dia (13.97mm) | - | -55°C ~ 125°C | Chassis Mount |
|
|
SGNMNC2356EKCAP TRIM 3.5-35PF 6000V CHAS MNT |
2,100 | - |
|
Datasheet |
Bulk | SGNM-Series 2 | Obsolete | 3.5 ~ 35pF | - | 6000 V | Ceramic | 600 @ 25MHz | 0.550 Dia (13.97mm) | - | -55°C ~ 125°C | Chassis Mount |
|
|
SGNMNC2406EKCAP TRIM 4-40PF 6000V CHAS MNT |
3,008 | - |
|
Datasheet |
Bulk | SGNM-Series 2 | Obsolete | 4 ~ 40pF | - | 6000 V | Ceramic | 500 @ 25MHz | 0.550 Dia (13.97mm) | - | -55°C ~ 125°C | Chassis Mount |
|
|
SGNMNC2502EKCAP TRIM 5-50PF 2500V CHAS MNT |
2,740 | - |
|
Datasheet |
Bulk | SGNM-Series 2 | Obsolete | 5 ~ 50pF | - | 2500 V | Ceramic | 500 @ 25MHz | 0.550 Dia (13.97mm) | - | -55°C ~ 125°C | Chassis Mount |
|
SGNMNC3101EKCAP TRIM 1-10PF 1500V CHAS MNT |
2,676 | - |
|
Datasheet |
Bulk | SGNM-Series 3 | Obsolete | 1 ~ 10pF | - | 1500 V | Ceramic | 2000 @ 25MHz | 0.710 Dia (18.03mm) | - | -55°C ~ 125°C | Chassis Mount |
|
|
SGNMNC3103EKCAP TRIM 1.5-10PF 3000V CHAS MNT |
3,159 | - |
|
Datasheet |
Bulk | SGNM-Series 3 | Obsolete | 1.5 ~ 10pF | - | 3000 V | Ceramic | 2000 @ 25MHz | 0.710 Dia (18.03mm) | - | -55°C ~ 125°C | Chassis Mount |
|
|
SGNMNC3106EKCAP TRIM 2-10PF 6000V CHAS MNT |
3,767 | - |
|
Datasheet |
Bulk | SGNM-Series 3 | Obsolete | 2 ~ 10pF | - | 6000 V | Ceramic | 1800 @ 25MHz | 0.710 Dia (18.03mm) | - | -55°C ~ 125°C | Chassis Mount |
|
|
SGNMNC3153EKCAP TRIM 1.5-15PF 3000V CHAS MNT |
3,360 | - |
|
Datasheet |
Bulk | SGNM-Series 3 | Obsolete | 1.5 ~ 15pF | - | 3000 V | Ceramic | 2000 @ 25MHz | 0.710 Dia (18.03mm) | - | -55°C ~ 125°C | Chassis Mount |
|
|
SGNMNC3205EKCAP TRIM 3-20PF 4500V CHAS MNT |
3,500 | - |
|
Datasheet |
Bulk | SGNM-Series 3 | Obsolete | 3 ~ 20pF | - | 4500 V | Ceramic | 600 @ 25MHz | 0.710 Dia (18.03mm) | - | -55°C ~ 125°C | Chassis Mount |
|
|
SGNMNC3253EKCAP TRIM 5-25PF 3000V CHAS MNT |
3,417 | - |
|
Datasheet |
Bulk | SGNM-Series 3 | Obsolete | 5 ~ 25pF | - | 3000 V | Ceramic | 1200 @ 25MHz | 0.710 Dia (18.03mm) | - | -55°C ~ 125°C | Chassis Mount |
