Film Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MLR202K100CAP FILM 2000PF 10% 100VDC RAD |
542 | - |
|
Datasheet |
Radial | Bag | MLR | Active | 2000 pF | ±10% | 65V | 100V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.217 L x 0.118 W (5.50mm x 3.00mm) | 0.354 (9.00mm) | PC Pins | 0.138 (3.50mm) | General Purpose | - |
|
ECQ-E4103KF3CAP FILM 10000PF 10% 400VDC RAD |
1,000 | - |
|
Datasheet |
Radial | Cut Tape (CT),Tape & Box (TB) | ECQ-E(F) | Active | 10000 pF | ±10% | - | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.406 L x 0.169 W (10.30mm x 4.30mm) | 0.488 (12.40mm) | PC Pins | 0.197 (5.00mm) | General Purpose | - |
|
|
ECQ-E2103RJFCAP FILM 10000PF 5% 250VDC RAD |
1,000 | - |
|
Datasheet |
Radial | Cut Tape (CT),Tape & Box (TB) | ECQ-E(F) | Active | 10000 pF | ±5% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.406 L x 0.169 W (10.30mm x 4.30mm) | 0.488 (12.40mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - |
|
MLR122K100CAP FILM 1200PF 10% 100VDC RAD |
880 | - |
|
Datasheet |
Radial | Bag | MLR | Active | 1200 pF | ±10% | 65V | 100V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.217 L x 0.118 W (5.50mm x 3.00mm) | 0.354 (9.00mm) | PC Pins | 0.138 (3.50mm) | General Purpose | - |
|
MLR152K100CAP FILM 1500PF 10% 100VDC RAD |
800 | - |
|
Datasheet |
Radial | Bag | MLR | Active | 1500 pF | ±10% | 65V | 100V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.217 L x 0.118 W (5.50mm x 3.00mm) | 0.354 (9.00mm) | PC Pins | 0.138 (3.50mm) | General Purpose | - |
|
MLR102K100CAP FILM 1000PF 10% 100VDC RAD |
182 | - |
|
Datasheet |
Radial | Bag | MLR | Active | 1000 pF | ±10% | 65V | 100V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.217 L x 0.118 W (5.50mm x 3.00mm) | 0.354 (9.00mm) | PC Pins | 0.138 (3.50mm) | General Purpose | - |
|
MLR103K50CAP FILM 10000PF 10% 50VDC RAD |
204 | - |
|
Datasheet |
Radial | Bag | MLR | Active | 10000 pF | ±10% | 35V | 50V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.236 L x 0.118 W (6.00mm x 3.00mm) | 0.354 (9.00mm) | PC Pins | 0.138 (3.50mm) | General Purpose | - |
|

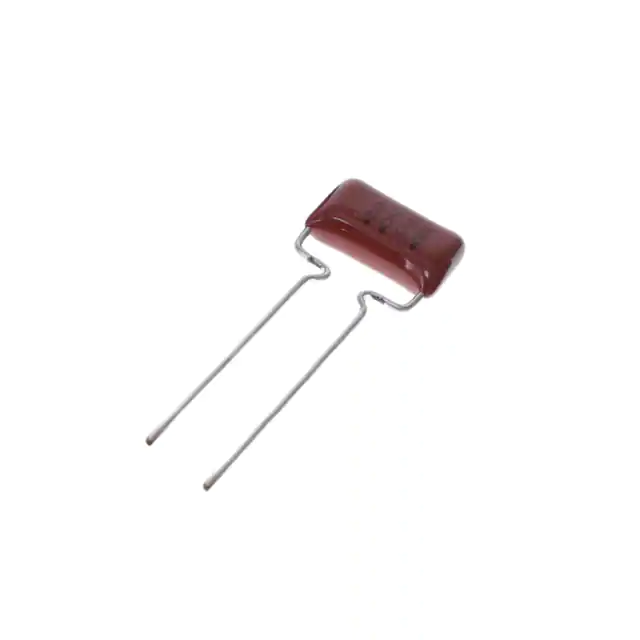

ECQ-E4473KF3CAP FILM 0.047UF 10% 400VDC RAD |
500 | - |
|
Datasheet |
Radial | Cut Tape (CT),Tape & Box (TB) | ECQ-E(F) | Active | 0.047 µF | ±10% | - | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.472 L x 0.197 W (12.00mm x 5.00mm) | 0.524 (13.30mm) | PC Pins | 0.197 (5.00mm) | General Purpose | - |
|
MLR183K100CAP FILM 0.018UF 10% 100VDC RAD |
609 | - |
|
Datasheet |
Radial | Bag | MLR | Active | 0.018 µF | ±10% | 65V | 100V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.256 L x 0.138 W (6.50mm x 3.50mm) | 0.413 (10.50mm) | PC Pins | 0.138 (3.50mm) | General Purpose | - |
|
MLR223K100CAP FILM 0.022UF 10% 100VDC RAD |
659 | - |
|
Datasheet |
Radial | Bag | MLR | Active | 0.022 µF | ±10% | 65V | 100V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.256 L x 0.138 W (6.50mm x 3.50mm) | 0.413 (10.50mm) | PC Pins | 0.138 (3.50mm) | General Purpose | - |
|
|
ECQ-E6223KF9CAP FILM 0.022UF 10% 630VDC RAD |
1,000 | - |
|
Datasheet |
Radial | Cut Tape (CT),Tape & Box (TB) | ECQ-E(F) | Active | 0.022 µF | ±10% | - | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.472 L x 0.209 W (12.00mm x 5.30mm) | 0.610 (15.50mm) | PC Pins | 0.197 (5.00mm) | General Purpose | - |
|
ECQ-E2224KF3CAP FILM 0.22UF 10% 250VDC RAD |
500 | - |
|
Datasheet |
Radial | Cut Tape (CT),Tape & Box (TB) | ECQ-E(F) | Active | 0.22 µF | ±10% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.472 L x 0.217 W (12.00mm x 5.50mm) | 0.610 (15.50mm) | PC Pins | 0.197 (5.00mm) | General Purpose | - |
|
CMPPAC310V473K10S5CAP FILM 0.047UF 310VAC RADIAL |
447 | - |
|
Datasheet |
Radial | Bag | CMPP | Active | 0.047 µF | - | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512 L x 0.276 W (13.00mm x 7.00mm) | 0.374 (9.50mm) | PC Pins | 0.394 (10.00mm) | EMI, RFI Suppression | X2 |
|

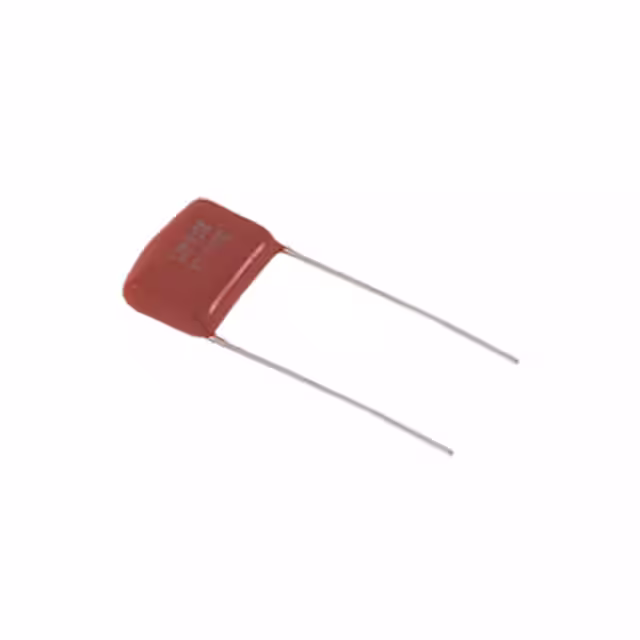

MLR683K100CAP FILM 0.068UF 10% 250VDC RAD |
397 | - |
|
Datasheet |
Radial | Bag | MLR | Active | 0.068 µF | ±10% | 125V | 250V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.315 L x 0.177 W (8.00mm x 4.50mm) | 0.472 (12.00mm) | PC Pins | 0.197 (5.00mm) | General Purpose | - |
|
MLR393K100CAP FILM 0.039UF 10% 100VDC RAD |
178 | - |
|
Datasheet |
Radial | Bag | MLR | Active | 0.039 µF | ±10% | 65V | 100V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.295 L x 0.177 W (7.50mm x 4.50mm) | 0.433 (11.00mm) | PC Pins | 0.197 (5.00mm) | General Purpose | - |
|
|
CMPPAC310V103K15S5CAP FILM 10000PF 310VAC RADIAL |
500 | - |
|
Datasheet |
Radial | Bag | CMPP | Active | 10000 pF | - | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709 L x 0.177 W (18.00mm x 4.50mm) | 0.354 (9.00mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression | X2 |
|
|
CMPPAC310V683K10S5CAP FILM 0.068UF 310VAC RADIAL |
400 | - |
|
Datasheet |
Radial | Bag | CMPP | Active | 0.068 µF | - | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512 L x 0.217 W (13.00mm x 5.50mm) | 0.413 (10.50mm) | PC Pins | 0.394 (10.00mm) | EMI, RFI Suppression | X2 |
|
|
CMPPAC310V333K15S5CAP FILM 0.033UF 310VAC RADIAL |
500 | - |
|
Datasheet |
Radial | Bag | CMPP | Active | 0.033 µF | - | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709 L x 0.177 W (18.00mm x 4.50mm) | 0.394 (10.00mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression | X2 |
|
|
CMPPAC310V473K15S6CAP FILM 0.047UF 310VAC RADIAL |
500 | - |
|
Datasheet |
Radial | Bag | CMPP | Active | 0.047 µF | - | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709 L x 0.197 W (18.00mm x 5.00mm) | 0.433 (11.00mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression | X2 |
|
|
CMPPAC310V473K15S5CAP FILM 0.047UF 310VAC RADIAL |
475 | - |
|
Datasheet |
Radial | Bag | CMPP | Active | 0.047 µF | - | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709 L x 0.177 W (18.00mm x 4.50mm) | 0.374 (9.50mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression | X2 |
