Film Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C4AQOBU4520M18JCAP FILM 5.2UF 5% 900VDC RADIAL |
3,677 | - |
|
Datasheet |
Radial | Bulk | C4AQ-M | Active | 5.2 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 9.5 mOhms | -55°C ~ 105°C | Through Hole | 1.654 L x 1.693 W (42.00mm x 43.00mm) | 1.189 (30.20mm) | PC Pins | 1.476 (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
|
C4AQJBU4700M1YJCAP FILM 7UF 5% 700VDC RADIAL |
592 | - |
|
Datasheet |
Radial | Bulk | C4AQ-M | Active | 7 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 9 mOhms | -55°C ~ 105°C | Through Hole | 1.240 L x 0.551 W (31.50mm x 14.00mm) | 1.110 (28.20mm) | PC Pins | 1.083 (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
715P152516LD3CAP FILM 1500PF 5% 1.6KVDC RAD |
2,011 | - |
|
Datasheet |
Radial | Bulk | Orange Drop® 715P | Active | 1500 pF | ±5% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.319 Dia x 1.252 L (8.10mm x 31.80mm) | 0.610 (15.50mm) | PC Pins | 0.720 (18.30mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
|
C4AQILU4750M19JCAP FILM 7.5UF 5% 800VDC RADIAL |
706 | - |
|
Datasheet |
Radial | Bulk | C4AQ-M | Active | 7.5 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 7.3 mOhms | -55°C ~ 105°C | Through Hole | 1.260 L x 1.220 W (32.00mm x 31.00mm) | 0.756 (19.20mm) | PC Pins | 1.083 (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
C4AF7BU4150T1YKFILM, POWER, METALLIZED POLYPROP |
384 | - |
|
Datasheet |
Radial | Bulk | C4AF | Active | 1.5 µF | ±10% | 350V | 700V | Polypropylene (PP), Metallized | 8.2 mOhms | -55°C ~ 105°C | Through Hole | 1.240 L x 0.551 W (31.50mm x 14.00mm) | 1.110 (28.20mm) | PC Pins | 1.083 (27.50mm) | Automotive | AEC-Q200 |
|
ECW-FG80355JCAP FILM 3.5UF 800VDC RADIAL |
2,712 | - |
|
Datasheet |
Radial | Bulk | ECWFG | Active | 3.5 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240 L x 0.531 W (31.50mm x 13.50mm) | 1.142 (29.00mm) | PC Pins | 1.083 (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 |
|
|
C4AQQBU4330M18JCAP FILM 3.3UF 5% 1.1KVDC RADIAL |
275 | - |
|
Datasheet |
Radial | Bulk | C4AQ-M | Active | 3.3 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 12 mOhms | -55°C ~ 105°C | Through Hole | 1.654 L x 1.693 W (42.00mm x 43.00mm) | 1.189 (30.20mm) | PC Pins | 1.476 (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
R60MR44705040KCAP FILM 4.7UF 10% 400VDC RAD |
308 | - |
|
Datasheet |
Radial | Tray | R60 | Active | 4.7 µF | ±10% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260 L x 0.551 W (32.00mm x 14.00mm) | 1.106 (28.10mm) | PC Pins | 1.083 (27.50mm) | General Purpose | - |
|
R60MR4470AA40KCAP FILM 4.7UF 10% 400VDC RADIAL |
289 | - |
|
Datasheet |
Radial | Box | R60 | Active | 4.7 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.260 L x 0.551 W (32.00mm x 14.00mm) | 1.106 (28.10mm) | PC Pins | 1.083 (27.50mm) | Automotive | AEC-Q200 |
|
BFC238320334CAP FILM 0.33UF 5% 630VDC RADIAL |
157 | - |
|
Datasheet |
Radial | Bulk | MMKP383 | Active | 0.33 µF | ±5% | 220V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220 L x 0.433 W (31.00mm x 11.00mm) | 0.827 (21.00mm) | PC Pins | 1.083 (27.50mm) | High Pulse, DV/DT | - |
|
|
C4AQIBU4850M1EJCAP FILM 8.5UF 5% 800VDC RADIAL |
238 | - |
|
Datasheet |
Radial | Bulk | C4AQ-M | Active | 8.5 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 7.1 mOhms | -55°C ~ 105°C | Through Hole | 1.260 L x 0.709 W (32.00mm x 18.00mm) | 1.307 (33.20mm) | PC Pins | 1.083 (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|

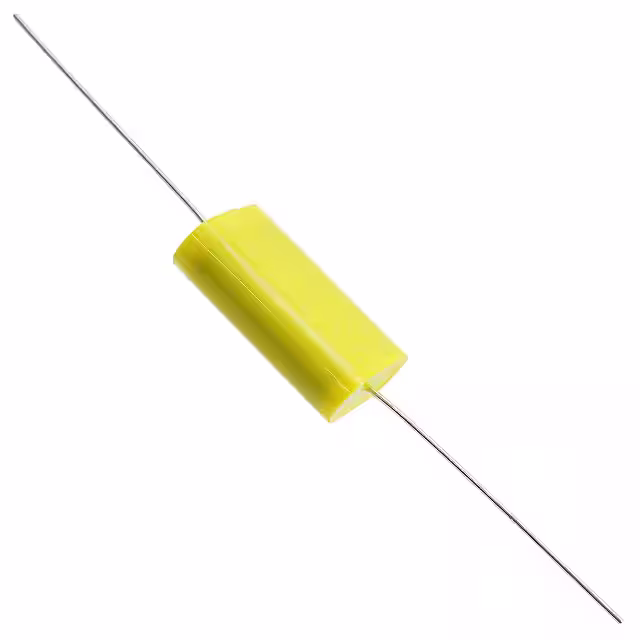

QAK2J334KTPCAP FILM 0.33UF 10% 630VDC AXIAL |
295 | - |
|
Datasheet |
Axial | Bulk | QAK | Active | 0.33 µF | ±10% | - | 630V | Polyester, Metallized | - | -40°C ~ 85°C | Through Hole | 0.728 W, 0.354 T x 1.102 L (18.50mm, 9.00mm x 28.00mm) | - | PC Pins | - | General Purpose | - |
|
|
C4AF3BU4150T11KFILM, POWER, METALLIZED POLYPROP |
288 | - |
|
Datasheet |
Radial | Bulk | C4AF | Active | 1.5 µF | ±10% | 400V | 800V | Polypropylene (PP), Metallized | 7.6 mOhms | -55°C ~ 105°C | Through Hole | 1.240 L x 0.748 W (31.50mm x 19.00mm) | 1.150 (29.20mm) | PC Pins | 1.083 (27.50mm) | Automotive | AEC-Q200 |
|
|
BFC238320683CAP FILM 0.068UF 5% 630VDC RAD |
256 | - |
|
Datasheet |
Radial | Bulk | MMKP383 | Active | 0.068 µF | ±5% | 220V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.689 L x 0.276 W (17.50mm x 7.00mm) | 0.532 (13.50mm) | PC Pins | 0.591 (15.00mm) | High Pulse, DV/DT | - |
|
ECW-F4225JLCAP FILM 2.2UF 5% 400VDC RADIAL |
1,000 | - |
|
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 2.2 µF | ±5% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102 L x 0.661 W (28.00mm x 16.80mm) | 1.004 (25.50mm) | PC Pins | 0.984 (25.00mm) | High Frequency, Switching | - |
|
|
ECW-F6115HLCAP FILM 1.1UF 3% 630VDC RADIAL |
1,000 | - |
|
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 1.1 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102 L x 0.642 W (28.00mm x 16.30mm) | 0.965 (24.50mm) | PC Pins | 0.984 (25.00mm) | High Frequency, Switching | - |
|
|
ECW-FG80475JCAP FILM 4.7UF 800VDC RADIAL |
144 | - |
|
Datasheet |
Radial | Bulk | ECWFG | Active | 4.7 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240 L x 0.531 W (31.50mm x 13.50mm) | 1.142 (29.00mm) | PC Pins | 1.083 (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 |
|
|
ECW-FG80395JCAP FILM 3.9UF 800VDC RADIAL |
134 | - |
|
Datasheet |
Radial | Bulk | ECWFG | Active | 3.9 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240 L x 0.531 W (31.50mm x 13.50mm) | 1.142 (29.00mm) | PC Pins | 1.083 (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 |
|

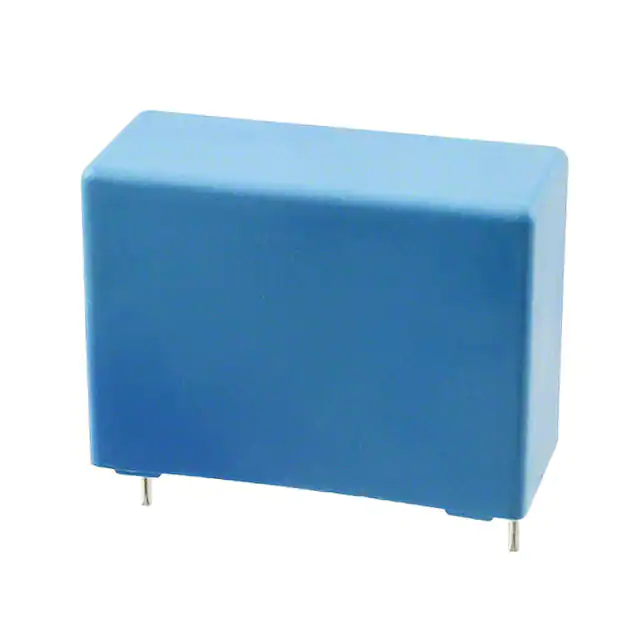

PHE840MF7120MF03R06L2CAP FILM 1.2UF 20% 760VDC RADIAL |
2,725 | - |
|
Datasheet |
Radial | Bulk | PHE840M | Active | 1.2 µF | ±20% | 275V | 760V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240 L x 0.531 W (31.50mm x 13.50mm) | 0.906 (23.00mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression | X2 |
|
ECQ-UAAF475MACAP FILM 4.7UF 20% 275VAC RADIAL |
191 | - |
|
Datasheet |
Radial | Bulk | ECQ-UA | Active | 4.7 µF | ±20% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.220 L x 0.906 W (31.00mm x 23.00mm) | 1.319 (33.50mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression | X2 |
