Film Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECW-FE2W475Q5CAP FILM 4.7UF 10% 450VDC RADIAL |
282 | - |
|
Datasheet |
Radial | Bulk | ECWFE | Active | 4.7 µF | ±10% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.220 L x 0.610 W (31.00mm x 15.50mm) | 1.024 (26.00mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|

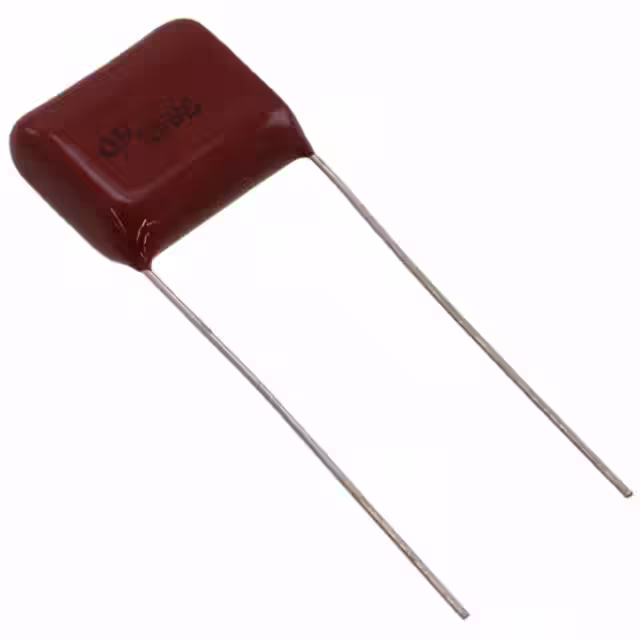

QXL2B684KTPTCAP FILM 0.68UF 10% 125VAC RAD |
240 | - |
|
Datasheet |
Radial | Bulk | QXL | Active | 0.68 µF | ±10% | 125V | - | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728 L x 0.358 W (18.50mm x 9.10mm) | 0.622 (15.80mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
|

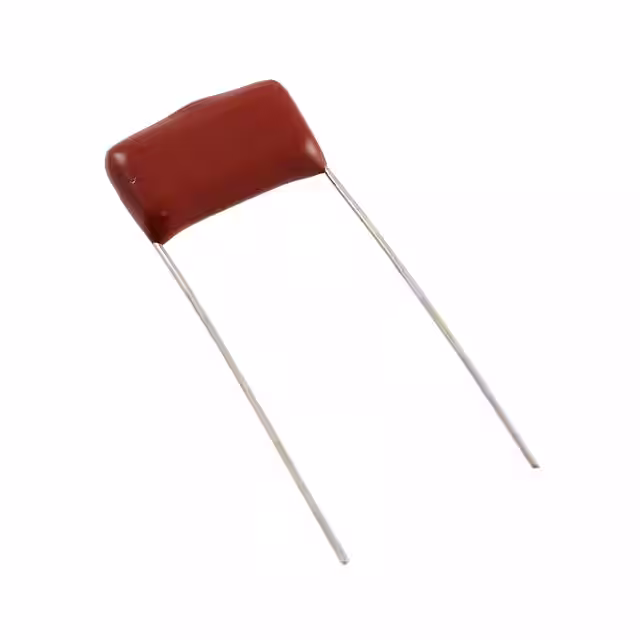

DME2P47K-FCAP FILM 0.47UF 10% 250VDC RAD |
500 | - |
|
Datasheet |
Radial | Bulk | DME | Active | 0.47 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.728 L x 0.236 W (18.50mm x 6.00mm) | 0.551 (14.00mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
|
B32032B4563K000CAP FILM 0.056UF 10% 1KVDC RAD |
418 | - |
|
Datasheet |
Radial | Bulk | B3203* - Y2 Humidity/Auto-Grade | Active | 0.056 µF | ±10% | 350V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709 L x 0.433 W (18.00mm x 11.00mm) | 0.728 (18.50mm) | PC Pins | 0.591 (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y2 |
|
BFC238330123CAP FILM 0.012UF 5% 1KVDC RADIAL |
650 | - |
|
Datasheet |
Radial | Bulk | MMKP383 | Active | 0.012 µF | ±5% | 350V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.689 L x 0.197 W (17.50mm x 5.00mm) | 0.433 (11.00mm) | PC Pins | 0.591 (15.00mm) | High Pulse, DV/DT | - |
|

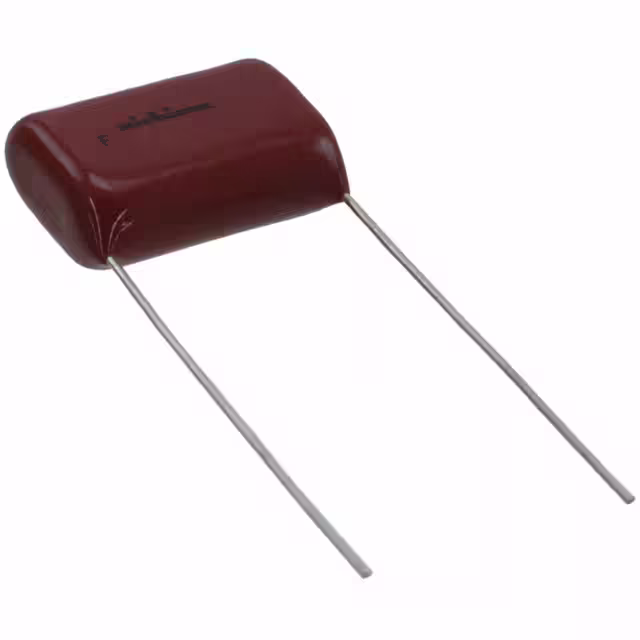

QXP2K683KRPTCAP FILM 0.068UF 10% 800VDC RAD |
234 | - |
|
Datasheet |
Radial | Bulk | QXP | Active | 0.068 µF | ±10% | 250V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.827 L x 0.343 W (21.00mm x 8.70mm) | 0.646 (16.40mm) | PC Pins | 0.689 (17.50mm) | High Frequency, Switching | - |
|
SMR5683J100J03L4BULKCAP FILM 0.068UF 5% 100VDC RAD |
991 | - |
|
Datasheet |
Radial | Bulk | SMR | Active | 0.068 µF | ±5% | 63V | 100V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 150°C | Through Hole | 0.283 L x 0.177 W (7.20mm x 4.50mm) | 0.354 (9.00mm) | PC Pins | 0.197 (5.00mm) | General Purpose | - |
|
PME271M433MR30CAP FILM 3300PF 20% 630VDC RAD |
449 | - |
|
Datasheet |
Radial | Box | PME271M | Active | 3300 pF | ±20% | 275V | 630V | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 0.531 L x 0.161 W (13.50mm x 4.10mm) | 0.323 (8.20mm) | PC Pins | 0.402 (10.20mm) | EMI, RFI Suppression | X2 |
|
ECW-F6363JLCAP FILM 0.036UF 5% 630VDC RAD |
405 | - |
|
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.036 µF | ±5% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512 L x 0.287 W (13.00mm x 7.30mm) | 0.461 (11.70mm) | PC Pins | 0.394 (10.00mm) | High Frequency, Switching | - |
|
C4AF9BU4100T1WKFILM, POWER, METALLIZED POLYPROP |
169 | - |
|
Datasheet |
Radial | Bulk | C4AF | Active | 1 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | 20.8 mOhms | -55°C ~ 105°C | Through Hole | 1.240 L x 0.433 W (31.50mm x 11.00mm) | 0.795 (20.20mm) | PC Pins | 1.083 (27.50mm) | Automotive | AEC-Q200 |
|
ECW-FG70105JCAP FILM 1.0UF 700VDC RADIAL |
142 | - |
|
Datasheet |
Radial | Bulk | ECWFG | Active | 1 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240 L x 0.374 W (31.50mm x 9.50mm) | 0.728 (18.50mm) | PC Pins | 1.083 (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 |
|
B32683A0333K000CAP FILM 0.033UF 10% 1KVDC RAD |
667 | - |
|
Datasheet |
Radial | Bulk | B3268* - MFP Very High Pulse | Active | 0.033 µF | ±10% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.043 L x 0.335 W (26.50mm x 8.50mm) | 0.650 (16.50mm) | PC Pins | 0.886 (22.50mm) | High Pulse, DV/DT | - |
|
ECW-FG2J155JACAP FILM 1.5UF 5% 630VDC RADIAL |
600 | - |
|
Datasheet |
Radial | Bulk | ECWFG | Active | 1.5 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240 L x 0.413 W (31.50mm x 10.50mm) | 0.846 (21.50mm) | PC Pins | 1.083 (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 |
|
R60GI42205030KCAP FILM 2.2UF 10% 160VDC RADIAL |
500 | - |
|
Datasheet |
Radial | Box | R60 | Active | 2.2 µF | ±10% | 90V | 160V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.709 L x 0.394 W (18.00mm x 10.00mm) | 0.634 (16.10mm) | PC Pins | 0.591 (15.00mm) | Automotive | AEC-Q200 |
|
R60MN41004040KCAP FILM 1UF 10% 400VDC RADIAL |
298 | - |
|
Datasheet |
Radial | Bulk | R60 | Active | 1 µF | ±10% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043 L x 0.335 W (26.50mm x 8.50mm) | 0.673 (17.10mm) | PC Pins | 0.886 (22.50mm) | Automotive | AEC-Q200 |
|
167224J63A-FCAP FILM 0.22UF 5% 63VDC RADIAL |
885 | - |
|
Datasheet |
Radial | Bulk | 167 | Active | 0.22 µF | ±5% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.413 L x 0.138 W (10.50mm x 3.50mm) | 0.276 (7.00mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - |
|
C4AQNBU4170M1WJCAP FILM 1.7UF 5% 1KVDC RADIAL |
758 | - |
|
Datasheet |
Radial | Bulk | C4AQ-M | Active | 1.7 µF | ±5% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 23.3 mOhms | -55°C ~ 105°C | Through Hole | 1.240 L x 0.433 W (31.50mm x 11.00mm) | 0.795 (20.20mm) | PC Pins | 1.083 (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
QXT2G333KRPTCAP FILM 0.033UF 10% 400VDC RAD |
426 | - |
|
Datasheet |
Radial | Bulk | QXT | Active | 0.033 µF | ±10% | 200V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.748 L x 0.323 W (19.00mm x 8.20mm) | 0.677 (17.20mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
|
ECW-H6124HCCAP FILM 0.12UF 3% 630VDC RADIAL |
884 | - |
|
Datasheet |
Radial | Bulk | ECW-H(C) | Active | 0.12 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.815 L x 0.370 W (20.70mm x 9.40mm) | 0.622 (15.80mm) | PC Pins | 0.689 (17.50mm) | General Purpose | - |
|
R49AN347040B1MCAP FILM 0.47UF 20% 800VDC RAD |
664 | - |
|
Datasheet |
Radial | Bulk | R49 | Active | 0.47 µF | ±20% | 330V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043 L x 0.394 W (26.50mm x 10.00mm) | 0.732 (18.60mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression | X1 |
