Film Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEC2G305HQA403CAP FILM 3UF 400VAC QC TERM |
3,831 | - |
|
Datasheet |
Rectangular Box | Bulk | EEC | Active | 3 µF | -5%, +10% | 400V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis Mount | 1.457 L x 0.610 W (37.00mm x 15.50mm) | 1.181 (30.00mm) | Quick Connect, Disconnect | - | Motor Run | - |
|
MKPF3Y52007H00KSSDCAP FILM 20UF 10% 450VDC RADIAL |
3,150 | - |
|
Datasheet |
Radial | Bulk | - | Active | 20 µF | ±10% | 230V | 450V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.634 L x 0.945 W (41.50mm x 24.00mm) | 1.791 (45.50mm) | PC Pins | 1.476 (37.50mm) | High Frequency, Switching | - |
|
C4AF3BW4680A3LKCAP FILM 6.8UF 10% 400VAC RADIAL |
3,022 | - |
|
Datasheet |
Radial - 4 Leads | Bulk | C4AF | Active | 6.8 µF | ±10% | 400V | - | Polypropylene (PP), Metallized | 1.7 mOhms | -55°C ~ 105°C | Through Hole | 1.654 L x 1.181 W (42.00mm x 30.00mm) | 1.780 (45.20mm) | PC Pins | 1.476 (37.50mm) | Automotive | AEC-Q200 |
|
505PHC400KCAP FILM 5UF 10% 400VDC AXIAL |
3,012 | - |
|
Datasheet |
Axial | Bulk | PHC | Active | 5 µF | ±10% | 250V | 400V | Polypropylene (PP), Metallized | 7.4 mOhms | -40°C ~ 85°C | Through Hole | 0.886 Dia x 1.811 L (22.50mm x 46.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching | - |
|

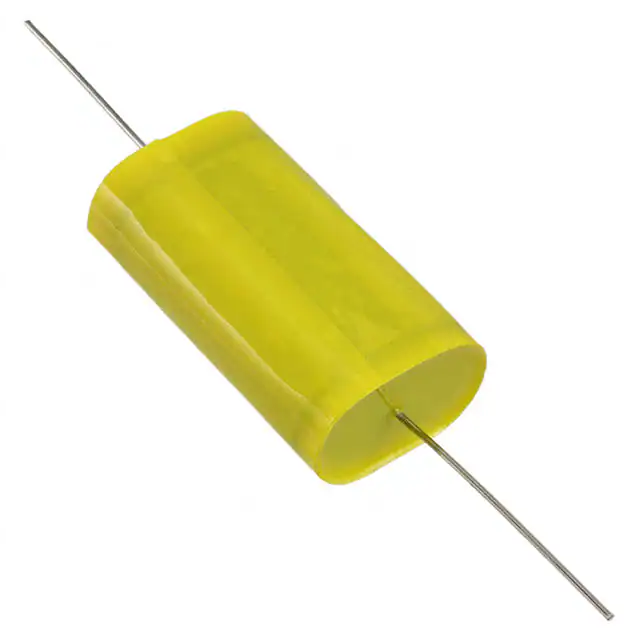

QAP2G475KRPCAP FILM 4.7UF 10% 400VDC AXIAL |
3,210 | - |
|
Datasheet |
Axial | Bulk | QAP | Active | 4.7 µF | ±10% | - | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 1.130 W, 0.748 T x 2.047 L (28.70mm, 19.00mm x 52.00mm) | - | PC Pins | - | High Frequency, Switching | - |
|
DS441505-BACAP FILM 5UF 10% 440VAC CHAS MT |
3,198 | - |
|
Datasheet |
Rectangular Box | Bulk | PMF | Active | 5 µF | ±10% | 440V | - | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis Mount | 1.969 L x 1.051 W (50.00mm x 26.70mm) | 1.516 (38.50mm) | Quick Connect - 0.187 (4.7mm) | - | Motor Run | - |
|
C878BF34800SA0JCAP FILM 8UF 5% 470VAC RADIAL |
3,941 | - |
|
Datasheet |
Radial, Can | Bulk | C87 | Active | 8 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.181 Dia (30.00mm) | 3.150 (80.00mm) | Quick Connect - 0.250 (6.3mm) | 0.528 (13.40mm) | Motor Run | - |
|
EZP-Q38805LTCCAP FILM 8UF 5% 380VAC RADIAL |
2,420 | - |
|
Datasheet |
Radial | Bulk | EZPQ | Active | 8 µF | ±5% | 380V | - | Polypropylene (PP), Metallized | 6 mOhms | -40°C ~ 105°C | Through Hole | 1.634 L x 1.043 W (41.50mm x 26.50mm) | 1.654 (42.00mm) | PC Pins | 1.476 (37.50mm) | General Purpose | - |
|
B33331V7126J080CAP FILM 12UF 5% 460VAC RADIAL |
3,303 | - |
|
Datasheet |
Radial, Can | Bulk | B3333* - MKP AC Round Can | Active | 12 µF | ±5% | 460V | - | Polypropylene (PP), Metallized | 13 mOhms | -40°C ~ 85°C | Chassis Mount | 1.594 Dia (40.50mm) | 2.638 (67.00mm) | Quick Connect - 0.250 (6.3mm) | - | General Purpose | - |
|
C276CC35300AA0JCAP FILM 30UF 5% 470VAC RADIAL |
3,391 | - |
|
Datasheet |
Radial, Can | Bulk | C276 | Active | 30 µF | ±5% | 470V | - | Polypropylene (PP) | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.772 Dia (45.00mm) | 2.992 (76.00mm) | Quick Connect - 0.250 (6.3mm) | 0.528 (13.40mm) | Motor Run; Motor Start | - |
|
C274AC35250AA0JCAP FILM 25UF 5% 470VAC RADIAL |
3,763 | - |
|
Datasheet |
Radial, Can | Bulk | C274 | Active | 25 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.772 Dia (45.00mm) | 3.740 (95.00mm) | Quick Connect - 0.250 (6.3mm) | 0.528 (13.40mm) | Motor Run; Motor Start | - |
|
EZP-E80106LTACAP FILM 10UF 10% 800VDC RADIAL |
2,342 | - |
|
Datasheet |
Radial | Bulk | EZPE | Active | 10 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 15.8 mOhms | -40°C ~ 85°C | Through Hole | 1.634 L x 0.787 W (41.50mm x 20.00mm) | 1.654 (42.00mm) | PC Pins | 1.476 (37.50mm) | DC Link, DC Filtering | - |
|

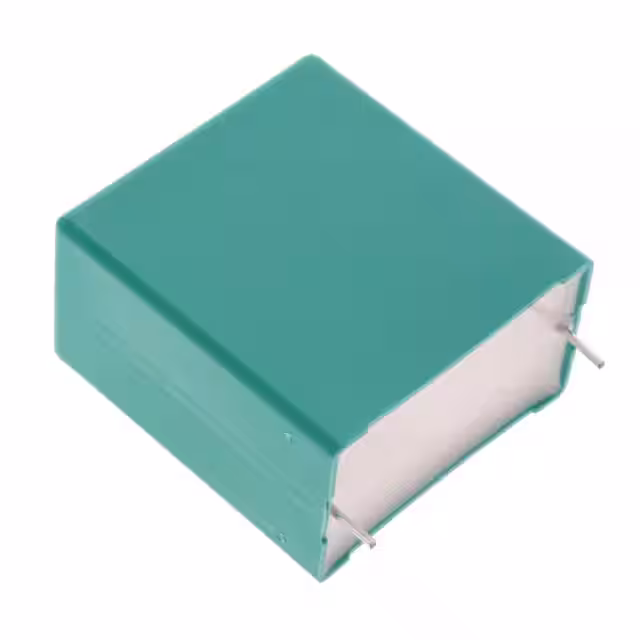

F871RO565M330ZCAP FILM 5.6UF 20% 330VAC RADIAL |
3,106 | - |
|
Datasheet |
Radial | Bulk | F871 | Active | 5.6 µF | ±20% | 330V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.614 L x 0.945 W (41.00mm x 24.00mm) | 1.732 (44.00mm) | PC Pins | 1.476 (37.50mm) | EMI, RFI Suppression | X1 |
|
FFB36J0825K--CAP FILM 8.2UF 10% 525VDC RADIAL |
2,311 | - |
|
Datasheet |
Radial | Bulk | FFB | Active | 8.2 µF | ±10% | 105V | 525V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.224 L x 0.681 W (31.10mm x 17.30mm) | 1.173 (29.80mm) | PC Pins | 1.083 (27.50mm) | DC Link, DC Filtering | - |
|
|
B33331V7256J080CAP FILM 25UF 5% 460VAC RADIAL |
2,008 | - |
|
Datasheet |
Radial, Can | Bulk | B3333* - MKP AC Round Can | Active | 25 µF | ±5% | 460V | - | Polypropylene (PP), Metallized | 12 mOhms | -40°C ~ 85°C | Chassis Mount | 1.772 Dia (45.00mm) | 3.425 (87.00mm) | Quick Connect - 0.250 (6.3mm) | - | General Purpose | - |
|
EEC2E106HQA405CAP FILM 10UF 250VAC QC TERM |
3,011 | - |
|
Datasheet |
Rectangular Box | Bulk | EEC | Active | 10 µF | -5%, +10% | 250V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis Mount | 1.457 L x 0.768 W (37.00mm x 19.50mm) | 1.339 (34.00mm) | Quick Connect, Disconnect | - | Motor Run | - |
|
|
B33331V7166J080CAP FILM 16UF 5% 460VAC RADIAL |
2,216 | - |
|
Datasheet |
Radial, Can | Bulk | B3333* - MKP AC Round Can | Active | 16 µF | ±5% | 460V | - | Polypropylene (PP), Metallized | 12 mOhms | -40°C ~ 85°C | Chassis Mount | 1.594 Dia (40.50mm) | 3.031 (77.00mm) | Quick Connect - 0.250 (6.3mm) | - | General Purpose | - |
|
MKP385E5101AJPM2T0CAP FILM 1UF 5% 1.6KVDC RAD |
2,020 | - |
|
Datasheet |
Radial | Bag | MKP385e | Active | 1 µF | ±5% | 550V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.654 L x 0.945 W (42.00mm x 24.00mm) | 1.752 (44.50mm) | PC Pins | 1.476 (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 |
|

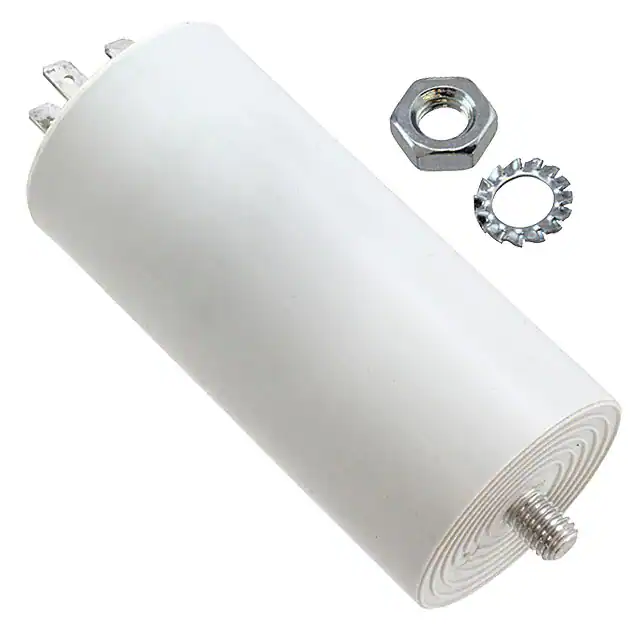

C274AC35300AA0JCAP FILM 30UF 5% 470VAC RADIAL |
3,619 | - |
|
Datasheet |
Radial, Can | Bulk | C274 | Active | 30 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.772 Dia (45.00mm) | 3.740 (95.00mm) | Quick Connect - 0.250 (6.3mm) | 0.528 (13.40mm) | Motor Run; Motor Start | - |
|
MKX2AW51007I00KSSDCAP FILM 10UF 10% 630VDC RAD |
2,571 | - |
|
Datasheet |
Radial | Bulk | - | Active | 10 µF | ±10% | 305V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.634 L x 1.220 W (41.50mm x 31.00mm) | 1.811 (46.00mm) | PC Pins | 1.476 (37.50mm) | EMI, RFI Suppression | X2 |
