Film Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
225P22392XD3CAP FILM 0.022UF 10% 200VDC RAD |
884 | - |
|
Datasheet |
Radial | Bulk | Orange Drop® 225P | Active | 0.022 µF | ±10% | 140V | 200V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.799 L x 0.252 W (20.30mm x 6.40mm) | 0.579 (14.70mm) | PC Pins | 0.375 (9.52mm) | Audio; DC Link, DC Filtering | - |
|

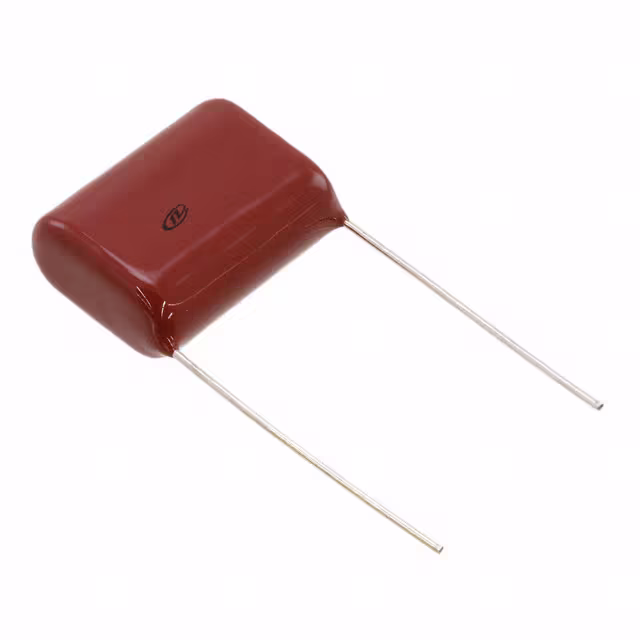

QXK2E475KTPCAP FILM 4.7UF 10% 250VDC RADIAL |
175 | - |
|
Datasheet |
Radial | Bulk | QXK | Active | 4.7 µF | ±10% | 125V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.004 L x 0.472 W (25.50mm x 12.00mm) | 0.858 (21.80mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
|
225P15391WD3CAP FILM 0.015UF 10% 100VDC RAD |
140 | - |
|
Datasheet |
Radial | Bulk | Orange Drop® 225P | Active | 0.015 µF | ±10% | 70V | 100V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.700 L x 0.252 W (17.78mm x 6.40mm) | 0.350 (8.90mm) | PC Pins | 0.375 (9.52mm) | Audio; DC Link, DC Filtering | - |
|
QAP2J154KRPCAP FILM 0.15UF 10% 630VDC AXIAL |
258 | - |
|
Datasheet |
Axial | Bulk | QAP | Active | 0.15 µF | ±10% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 0.508 W, 0.248 T x 1.181 L (12.90mm, 6.30mm x 30.00mm) | - | PC Pins | - | High Frequency, Switching | - |
|
ECW-FG1B305JACAP FILM 3UF 5% 1.1KVDC RADIAL |
159 | - |
|
Datasheet |
Radial | Bulk | ECWFG | Active | 3 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240 L x 0.630 W (31.50mm x 16.00mm) | 1.181 (30.00mm) | PC Pins | 1.083 (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 |
|
DPPM20D47K-FCAP FILM 4700PF 10% 2KVDC RADIAL |
2,323 | - |
|
Datasheet |
Radial | Bulk | DPPM | Active | 4700 pF | ±10% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.220 L x 0.394 W (31.00mm x 10.00mm) | 0.807 (20.50mm) | PC Pins | 1.043 (26.50mm) | High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
R75RR327050H4JCAP FILM 0.27UF 5% 1.25KVDC RAD |
864 | - |
|
Datasheet |
Radial | Tray | R75H | Active | 0.27 µF | ±5% | 600V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 10 mOhms | -55°C ~ 125°C | Through Hole | 1.260 L x 0.512 W (32.00mm x 13.00mm) | 0.988 (25.10mm) | PC Pins | 1.083 (27.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 |
|
F339X143348MIP2T0CAP FILM 0.33UF 20% 1KVDC RADIAL |
140 | - |
|
Datasheet |
Radial | Tray | F339X1 | Active | 0.33 µF | ±20% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.024 L x 0.472 W (26.00mm x 12.00mm) | 0.866 (22.00mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression | X1 |
|

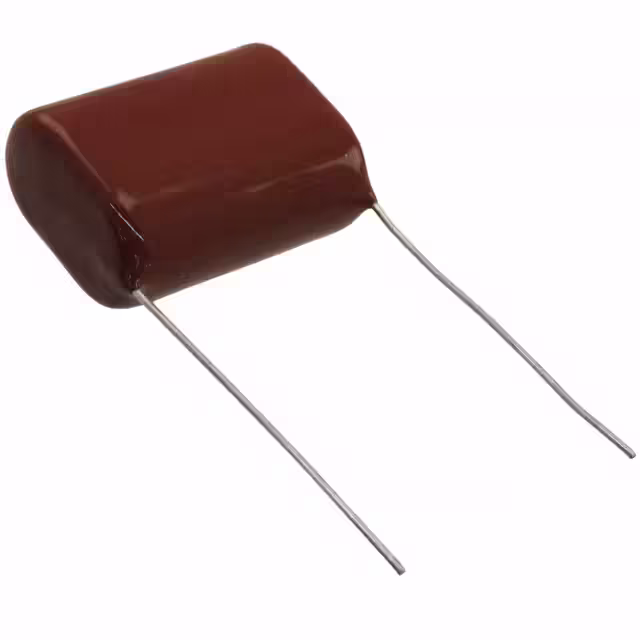

QXK2J155KTPCAP FILM 1.5UF 10% 630VDC RADIAL |
3,561 | - |
|
Datasheet |
Radial | Bulk | QXK | Active | 1.5 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.201 L x 0.583 W (30.50mm x 14.80mm) | 0.976 (24.80mm) | PC Pins | 1.083 (27.50mm) | General Purpose | - |
|
ECW-F4155HLCAP FILM 1.5UF 3% 400VDC RADIAL |
947 | - |
|
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 1.5 µF | ±3% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102 L x 0.539 W (28.00mm x 13.70mm) | 0.874 (22.20mm) | PC Pins | 0.984 (25.00mm) | High Frequency, Switching | - |
|
R60DN51005030JCAP FILM 10UF 5% 63VDC RADIAL |
706 | - |
|
Datasheet |
Radial | Bulk | R60 | Active | 10 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043 L x 0.335 W (26.50mm x 8.50mm) | 0.673 (17.10mm) | PC Pins | 0.886 (22.50mm) | Automotive | AEC-Q200 |
|
C4AF7BU4100A1XKCAP FILM 1UF 10% 700VDC RADIAL |
148 | - |
|
Datasheet |
Radial | Box | C4AF | Active | 1 µF | ±10% | 350V | 700V | Polypropylene (PP), Metallized | 10.6 mOhms | -55°C ~ 105°C | Through Hole | 1.240 L x 0.512 W (31.50mm x 13.00mm) | 0.992 (25.20mm) | PC Pins | 1.083 (27.50mm) | Automotive | AEC-Q200 |
|
R60DN5100AA30JCAP FILM 10UF 5% 63VDC RADIAL |
2,718 | - |
|
Datasheet |
Radial | Box | R60 | Active | 10 µF | ±5% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.043 L x 0.335 W (26.50mm x 8.50mm) | 0.673 (17.10mm) | PC Pins | 0.886 (22.50mm) | Automotive | AEC-Q200 |
|
225P47294XD3CAP FILM 4700PF 10% 400VDC RAD |
987 | - |
|
Datasheet |
Radial | Bulk | Orange Drop® 225P | Active | 4700 pF | ±10% | - | 400V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.799 L x 0.252 W (20.30mm x 6.40mm) | 0.551 (14.00mm) | PC Pins | 0.374 (9.50mm) | Audio; DC Link, DC Filtering | - |
|
684PHC400KCAP FILM 0.68UF 10% 400VDC AXIAL |
546 | - |
|
Datasheet |
Axial | Bulk | PHC | Active | 0.68 µF | ±10% | 250V | 400V | Polypropylene (PP), Metallized | 8.9 mOhms | -40°C ~ 85°C | Through Hole | 0.472 Dia x 1.339 L (12.00mm x 34.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching | - |
|
PHE450PD6180JR06L2CAP FILM 0.18UF 5% 1KVDC RADIAL |
572 | - |
|
Datasheet |
Radial | Tray | PHE450 | Active | 0.18 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024 L x 0.413 W (26.00mm x 10.50mm) | 0.748 (19.00mm) | PC Pins | 0.886 (22.50mm) | High Frequency, Switching | - |
|
PME261JC5680KR30CAP FILM 0.068UF 10% 1KVDC RAD |
378 | - |
|
Datasheet |
Radial | Bulk | PME261 | Active | 0.068 µF | ±10% | 500V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 100°C | Through Hole | 0.945 L x 0.354 W (24.00mm x 9.00mm) | 0.591 (15.00mm) | PC Pins | 0.799 (20.30mm) | General Purpose | - |
|

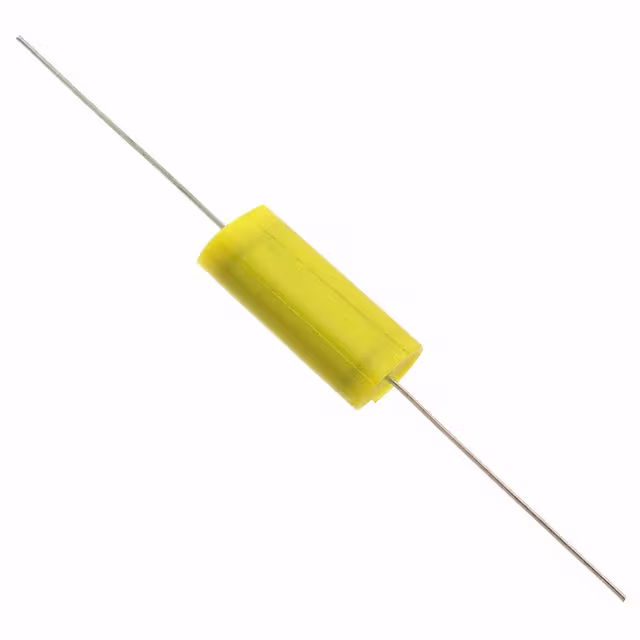

QAP2G474KRPCAP FILM 0.47UF 10% 400VDC AXIAL |
179 | - |
|
Datasheet |
Axial | Bulk | QAP | Active | 0.47 µF | ±10% | - | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 0.618 W, 0.362 T x 1.181 L (15.70mm, 9.20mm x 30.00mm) | - | PC Pins | - | High Frequency, Switching | - |
|
R60EN46805030JCAP FILM 6.8UF 5% 100VDC RADIAL |
100 | - |
|
Datasheet |
Radial | Box | R60 | Active | 6.8 µF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 1.043 L x 0.394 W (26.50mm x 10.00mm) | 0.732 (18.60mm) | PC Pins | 0.886 (22.50mm) | Automotive | AEC-Q200 |
|
R46KW447000M1MCAP FILM 4.7UF 20% 560VDC RADIAL |
448 | - |
|
Datasheet |
Radial | Tray | R46 | Active | 4.7 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634 L x 0.748 W (41.50mm x 19.00mm) | 1.264 (32.10mm) | PC Pins | 1.476 (37.50mm) | EMI, RFI Suppression | X2 |
