Film Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32924A4474M000CAP FILM 0.47UF 20% 650VDC RAD |
162 | - |
|
Datasheet |
Radial | Bulk | B3292*A/B - X2 High Current | Active | 0.47 µF | ±20% | 350V | 650V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 1.240 L x 0.433 W (31.50mm x 11.00mm) | 0.748 (19.00mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression | X2 |
|
B32654A2223K000CAP FILM 0.022UF 10% 2KVDC RAD |
123 | - |
|
Datasheet |
Radial | Bulk | B3265* - MKP General Purpose | Active | 0.022 µF | ±10% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240 L x 0.433 W (31.50mm x 11.00mm) | 0.827 (21.00mm) | PC Pins | 1.083 (27.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | AEC-Q200 |
|

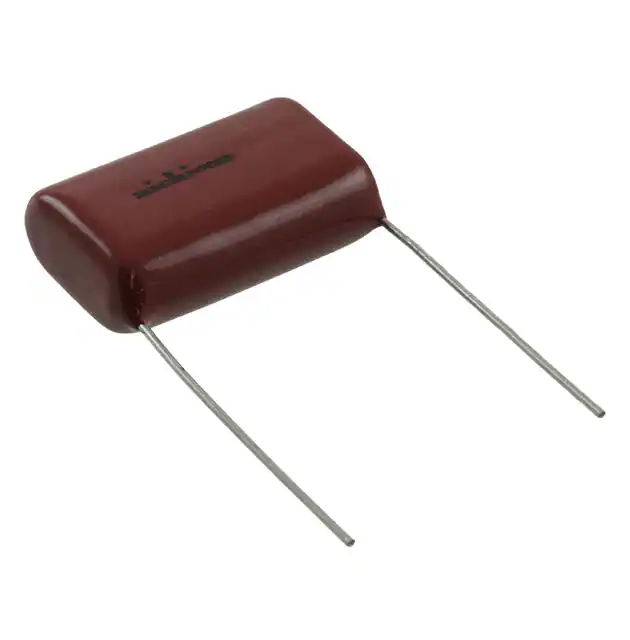

QXK2J474KTPTZHCAP FILM 0.47UF 10% 630VDC RAD |
3,255 | - |
|
Datasheet |
Radial | Bulk | QXK-ZH | Active | 0.47 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220 L x 0.445 W (31.00mm x 11.30mm) | 0.835 (21.20mm) | PC Pins | 1.083 (27.50mm) | General Purpose | - |
|

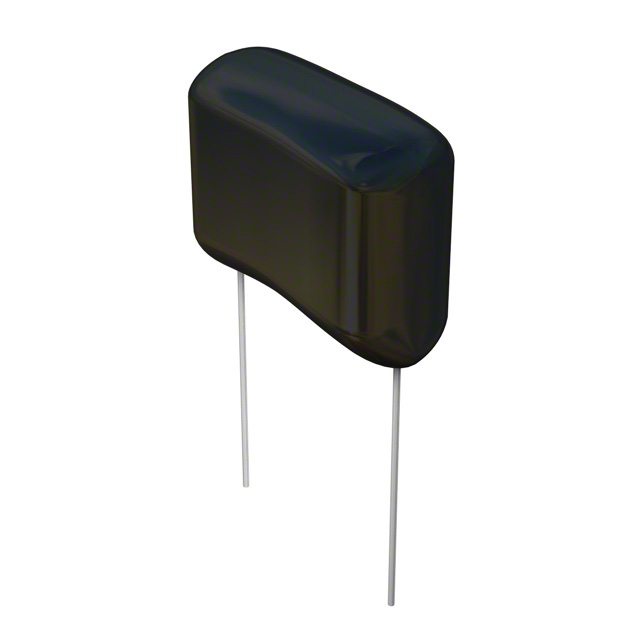

DME10P22K-FCAP FILM 0.22UF 10% 1KVDC RADIAL |
676 | - |
|
Datasheet |
Radial | Bulk | DME | Active | 0.22 µF | ±10% | 250V | 1000V (1kV) | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 1.024 L x 0.472 W (26.00mm x 12.00mm) | 0.906 (23.00mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
|
FKP1Y016806D00JSSDCAP FILM 6800PF 5% 6KVDC RAD |
3,763 | - |
|
Datasheet |
Radial | Bulk | - | Active | 6800 pF | ±5% | 700V | 6000V (6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240 L x 0.512 W (31.50mm x 13.00mm) | 0.945 (24.00mm) | PC Pins | 1.083 (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - |
|
ECW-FD2J395KCAP FILM 3.9UF 10% 630VDC RADIAL |
400 | - |
|
Datasheet |
Radial | Bulk | ECW-F(D) | Active | 3.9 µF | ±10% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.996 L x 0.654 W (25.30mm x 16.60mm) | 0.929 (23.60mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
BFC236825105CAP FILM 1UF 10% 100VDC RADIAL |
169 | - |
|
Datasheet |
Radial | Bulk | MKT368 | Active | 1 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.689 L x 0.295 W (17.50mm x 7.50mm) | 0.650 (16.50mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
|

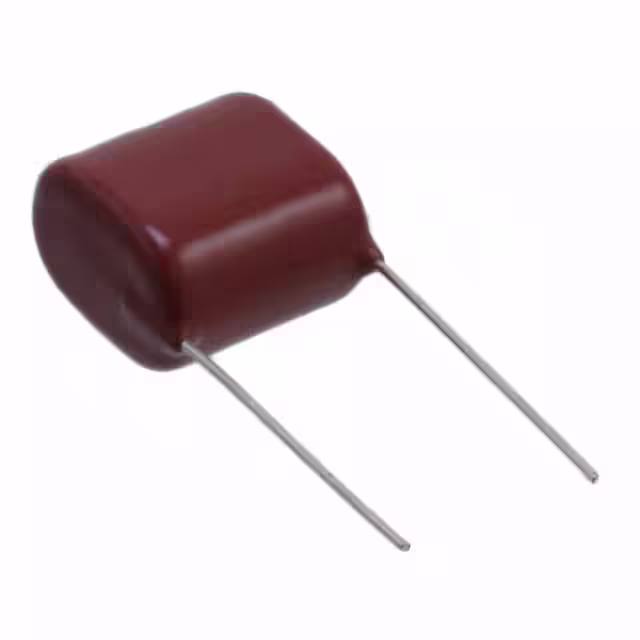

ECW-H6334HCCAP FILM 0.33UF 3% 630VDC RADIAL |
3,792 | - |
|
Datasheet |
Radial | Bulk | ECW-H(C) | Active | 0.33 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.815 L x 0.579 W (20.70mm x 14.70mm) | 0.831 (21.10mm) | PC Pins | 0.689 (17.50mm) | General Purpose | - |
|
474MWR630KCAP FILM 0.47UF 10% 630VDC AXIAL |
135 | - |
|
Datasheet |
Axial | Bulk | MWR | Active | 0.47 µF | ±10% | 220V | 630V | Polyester, Metallized | 3.01 Ohms | -40°C ~ 105°C | Through Hole | 0.610 Dia x 1.339 L (15.50mm x 34.00mm) | - | PC Pins | - | General Purpose | - |
|
890334026030CAP FILM 1.5UF 10% 310VAC RADIAL |
3,171 | - |
|
Datasheet |
Radial | Bulk | WCAP-FTXX | Active | 1.5 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.394 W (26.00mm x 10.00mm) | 0.846 (21.50mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression | X2 |
|
|
105MWR400KCAP FILM 1UF 10% 400VDC AXIAL |
525 | - |
|
Datasheet |
Axial | Bulk | MWR | Active | 1 µF | ±10% | 200V | 400V | Polyester, Metallized | 1.415 Ohms | -40°C ~ 105°C | Through Hole | 0.571 Dia x 1.339 L (14.50mm x 34.00mm) | - | PC Pins | - | General Purpose | - |
|
R60DI44705030KCAP FILM 4.7UF 10% 63VDC RADIAL |
470 | - |
|
Datasheet |
Radial | Bulk | R60 | Active | 4.7 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709 L x 0.335 W (18.00mm x 8.50mm) | 0.575 (14.60mm) | PC Pins | 0.591 (15.00mm) | Automotive | AEC-Q200 |
|
C4AQUBU4180A1XJCAP FILM 1.8UF 5% 1.3KVDC RADIAL |
702 | - |
|
Datasheet |
Radial | Bulk | C4AQ | Active | 1.8 µF | ±5% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 19.1 mOhms | -40°C ~ 105°C | Through Hole | 1.240 L x 0.512 W (31.50mm x 13.00mm) | 0.992 (25.20mm) | PC Pins | 1.083 (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
ECW-F4514HLCAP FILM 0.51UF 3% 400VDC RADIAL |
424 | - |
|
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.51 µF | ±3% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.807 L x 0.406 W (20.50mm x 10.30mm) | 0.720 (18.30mm) | PC Pins | 0.689 (17.50mm) | High Frequency, Switching | - |
|
MKP4F042205I00JSSDCAP FILM 2.2UF 5% 250VDC RAD |
3,290 | - |
|
Datasheet |
Radial | Bulk | - | Active | 2.2 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.043 L x 0.433 W (26.50mm x 11.00mm) | 0.827 (21.00mm) | PC Pins | 0.886 (22.50mm) | High Frequency, Switching | - |
|

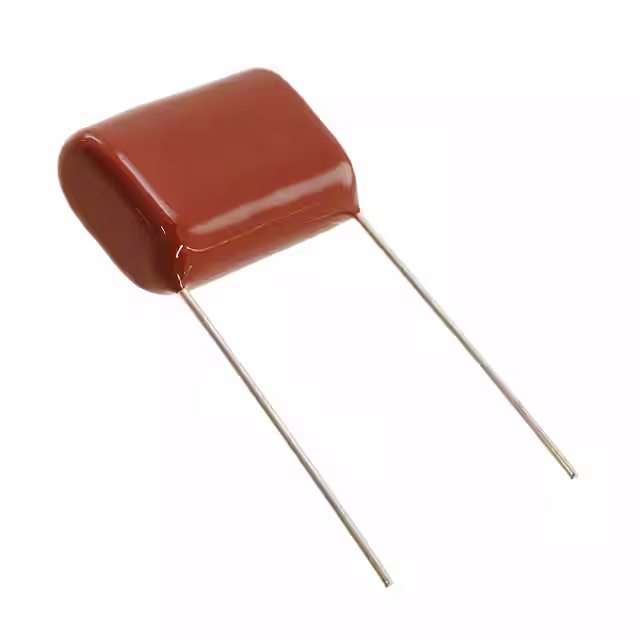

QXP2K224KRPTCAP FILM 0.22UF 10% 800VDC RAD |
290 | - |
|
Datasheet |
Radial | Bulk | QXP | Active | 0.22 µF | ±10% | 250V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.043 L x 0.453 W (26.50mm x 11.50mm) | 0.839 (21.30mm) | PC Pins | 0.886 (22.50mm) | High Frequency, Switching | - |
|
B32524Q6225KCAP FILM 2.2UF 10% 400VDC RADIAL |
3,317 | - |
|
Datasheet |
Radial | Bulk | B3252* - MKT General Purpose | Not For New Designs | 2.2 µF | ±10% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240 L x 0.492 W (31.50mm x 12.50mm) | 0.846 (21.50mm) | PC Pins | 1.083 (27.50mm) | Automotive; EMI, RFI Suppression | - |
|
ECQ-E6185JFCAP FILM 1.8UF 5% 630VDC RADIAL |
831 | - |
|
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 1.8 µF | ±5% | 250V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220 L x 0.661 W (31.00mm x 16.80mm) | 1.122 (28.50mm) | PC Pins | 1.083 (27.50mm) | General Purpose | - |
|
ECW-FG70225KCAP FILM 2.2UF 700VDC RADIAL |
400 | - |
|
Datasheet |
Radial | Bulk | ECWFG | Active | 2.2 µF | ±10% | - | 700V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240 L x 0.472 W (31.50mm x 12.00mm) | 0.984 (25.00mm) | PC Pins | 1.083 (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 |
|
MPX335K305HCAP FILM 3.3UF 10% 305VAC RAD |
562 | - |
|
Datasheet |
Radial | Tray | MPX | Active | 3.3 µF | ±10% | 305V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260 L x 0.709 W (32.00mm x 18.00mm) | 1.319 (33.50mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression | X2 |
