Film Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
890334025043CAP FILM 0.56UF 10% 310VAC RAD |
892 | - |
|
Datasheet |
Radial | Bulk | WCAP-FTXX | Active | 0.56 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709 L x 0.354 W (18.00mm x 9.00mm) | 0.610 (15.50mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression | X2 |
|
B32520C1684K000CAP FILM 0.68UF 10% 100VDC RAD |
800 | - |
|
Datasheet |
Radial | Bulk | B3252* - MKT General Purpose | Active | 0.68 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.406 L x 0.236 W (10.30mm x 6.00mm) | 0.472 (12.00mm) | PC Pins | 0.295 (7.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 |
|

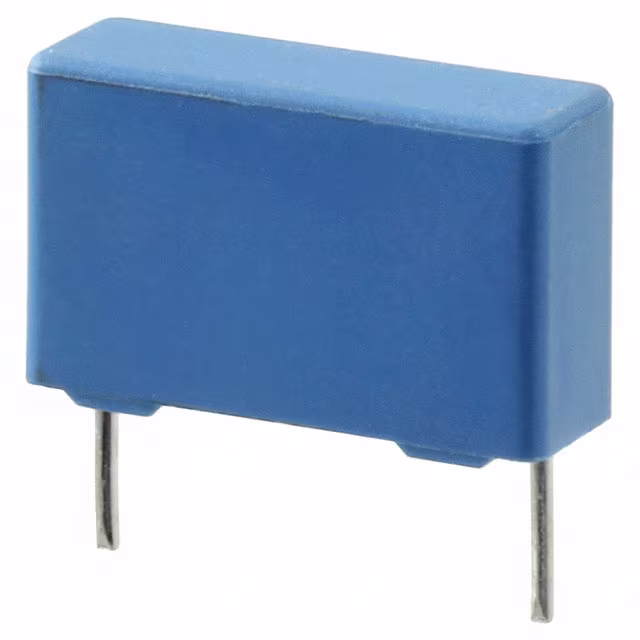

B32642B0223JCAP FILM 0.022UF 5% 1KVDC RADIAL |
3,743 | - |
|
Datasheet |
Radial | Bulk | B3264* - MMKP High Frequency | Active | 0.022 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709 L x 0.236 W (18.00mm x 6.00mm) | 0.433 (11.00mm) | PC Pins | 0.591 (15.00mm) | DC Link, DC Filtering; High Frequency, Switching | - |
|
ECQ-E4154JFCAP FILM 0.15UF 5% 400VDC RADIAL |
496 | - |
|
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.15 µF | ±5% | 200V | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728 L x 0.197 W (18.50mm x 5.00mm) | 0.528 (13.40mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
|
MKS2G031501M00KSSDCAP FILM 0.15UF 10% 400VDC RAD |
385 | - |
|
Datasheet |
Radial | Bulk | - | Active | 0.15 µF | ±10% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.283 L x 0.335 W (7.20mm x 8.50mm) | 0.551 (14.00mm) | PC Pins | 0.197 (5.00mm) | Automotive | AEC-Q200 |
|
R46KN333000M1KCAP FILM 0.33UF 10% 560VDC RAD |
130 | - |
|
Datasheet |
Radial | Bulk | R46 | Active | 0.33 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | - | - | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression | X2 |
|
PHE450PD5220JR035CL2CAP FILM 0.022UF 5% 1KVDC RADIAL |
936 | - |
|
Radial | Tray | PHE450 | Active | 0.022 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024 L x 0.256 W (26.00mm x 6.50mm) | 0.571 (14.50mm) | PC Pins | 0.886 (22.50mm) | High Frequency, Switching | - | |
|
R46KN3220JBM1KCAP FILM 0.22UF 10% 560VDC RAD |
810 | - |
|
Datasheet |
Radial | Bulk | R46 | Active | 0.22 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043 L x 0.236 W (26.50mm x 6.00mm) | 0.594 (15.10mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression | X2 |
|
R60DF4150506AJCAP FILM 1.5UF 5% 63VDC RADIAL |
783 | - |
|
Datasheet |
Radial | Bulk | R60 | Active | 1.5 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.512 L x 0.197 W (13.00mm x 5.00mm) | 0.437 (11.10mm) | PC Pins | 0.394 (10.00mm) | Automotive | AEC-Q200 |
|
PHE820MB5220MR17CAP FILM 0.022UF 20% 275VAC RAD |
779 | - |
|
Datasheet |
Radial | Bulk | PHE820 | Active | 0.022 µF | ±20% | 275V | - | Polyester, Metallized | - | -40°C ~ 100°C | Through Hole | 0.709 L x 0.217 W (18.00mm x 5.50mm) | 0.413 (10.50mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression | X2 |
|
R46KN333000N0MCAP FILM 0.33UF 20% 560VDC RAD |
527 | - |
|
Datasheet |
Radial | Bulk | R46 | Active | 0.33 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043 L x 0.236 W (26.50mm x 6.00mm) | 0.594 (15.10mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression | X2 |
|
R46KN322040H1MCAP FILM 0.22UF 20% 560VDC RAD |
497 | - |
|
Datasheet |
Radial | Bulk | R46 | Active | 0.22 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 1.043 L x 0.236 W (26.50mm x 6.00mm) | 0.594 (15.10mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression | X2 |
|
B32652A2332J000CAP FILM 3300PF 5% 2KVDC RADIAL |
474 | - |
|
Datasheet |
Radial | Bulk | B3265* - MKP General Purpose | Active | 3300 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709 L x 0.335 W (18.00mm x 8.50mm) | 0.571 (14.50mm) | PC Pins | 0.591 (15.00mm) | Automotive; DC Link, DC Filtering; High Pulse, DV/DT; Snubber | AEC-Q200 |
|
R75QI268050H6JCAP FILM 0.068UF 5% 1KVDC RADIAL |
405 | - |
|
Datasheet |
Radial | Bulk | R75H | Active | 0.068 µF | ±5% | 250V | 1000V (1kV) | Polypropylene (PP), Metallized | 23.4 mOhms | -55°C ~ 125°C | Through Hole | 0.709 L x 0.512 W (18.00mm x 13.00mm) | 0.476 (12.10mm) | PC Pins | 0.591 (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 |
|

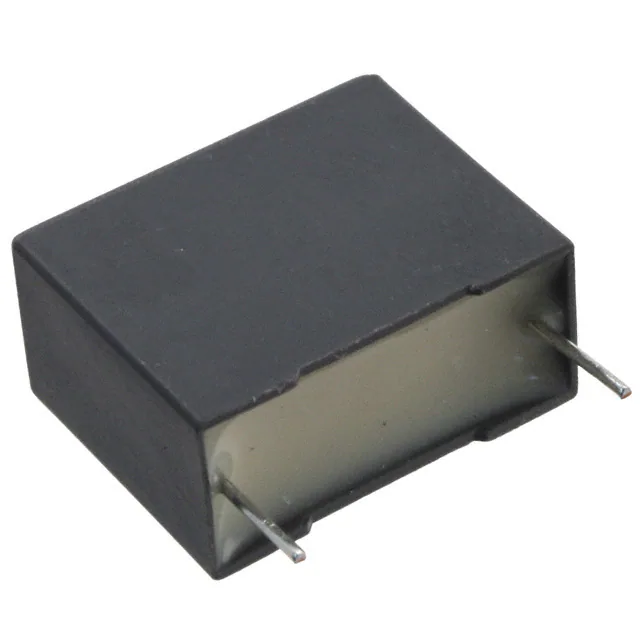

R49AI31000001KCAP FILM 0.1UF 10% 800VDC RADIAL |
221 | - |
|
Datasheet |
Radial | Bulk | R49 | Active | 0.1 µF | ±10% | 310V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709 L x 0.335 W (18.00mm x 8.50mm) | 0.575 (14.60mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression | X1 |
|

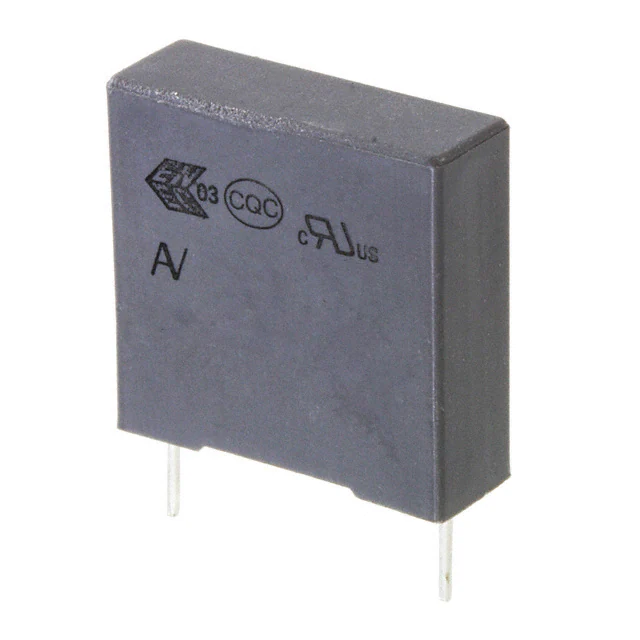

R46KI333000P2MCAP FILM 0.33UF 20% 560VDC RAD |
192 | - |
|
Datasheet |
Radial | Bulk | R46 | Active | 0.33 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709 L x 0.236 W (18.00mm x 6.00mm) | 0.693 (17.60mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression | X2 |
|
SMDID02470QA00KP00CAP FILM 0.047UF 10% 100VDC 2220 |
1,000 | - |
|
Datasheet |
2220 (5750 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | 0.047 µF | ±10% | 63V | 100V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 140°C | Surface Mount | 0.224 L x 0.201 W (5.70mm x 5.10mm) | 0.150 (3.80mm) | Solder Pads | - | General Purpose | - |
|
R60QI21004000KCAP FILM 10000PF 10% 1KVDC RAD |
917 | - |
|
Datasheet |
Radial | Bulk | R60 | Active | 10000 pF | ±10% | 250V | 1000V (1kV) | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709 L x 0.197 W (18.00mm x 5.00mm) | 0.437 (11.10mm) | PC Pins | 0.591 (15.00mm) | Automotive | AEC-Q200 |
|

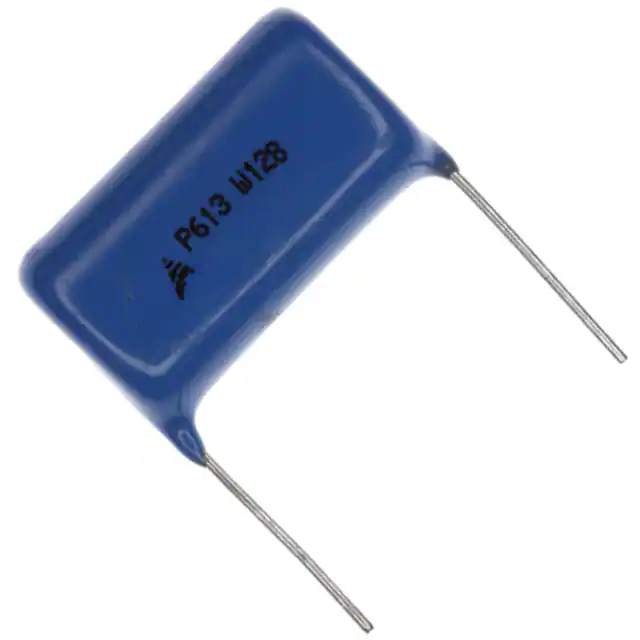

B32613A2103J008CAP FILM 10000PF 5% 2KVDC RADIAL |
657 | - |
|
Datasheet |
Radial | Bulk | B32613 | Active | 10000 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.043 L x 0.413 W (26.50mm x 10.50mm) | - | - | 0.886 (22.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | - |
|
R46KI333040N0MCAP FILM 0.33UF 20% 560VDC RAD |
399 | - |
|
Datasheet |
Radial | Bulk | R46 | Active | 0.33 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709 L x 0.335 W (18.00mm x 8.50mm) | 0.575 (14.60mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression | X2 |
