Film Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Series.jpg)
|

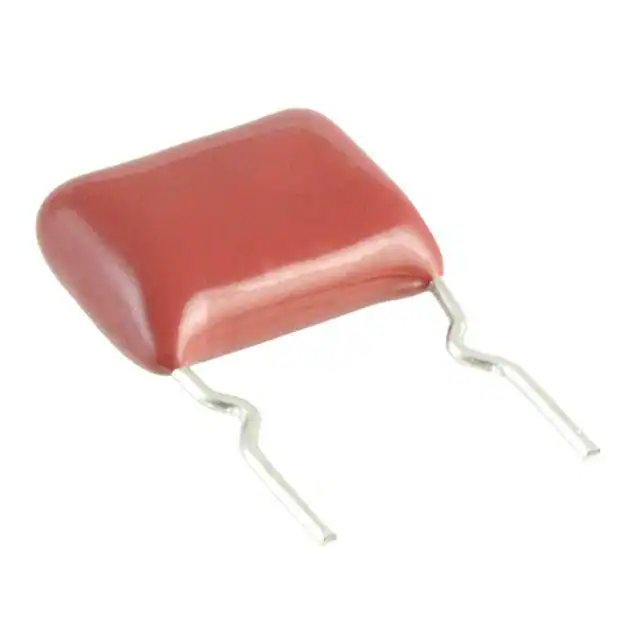

ECW-FE2W224QDCAP FILM 0.22UF 10% 450VDC RAD |
938 | - |
|
Datasheet |
Radial | Bulk | ECWFE | Active | 0.22 µF | ±10% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.689 L x 0.197 W (17.50mm x 5.00mm) | 0.433 (11.00mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|

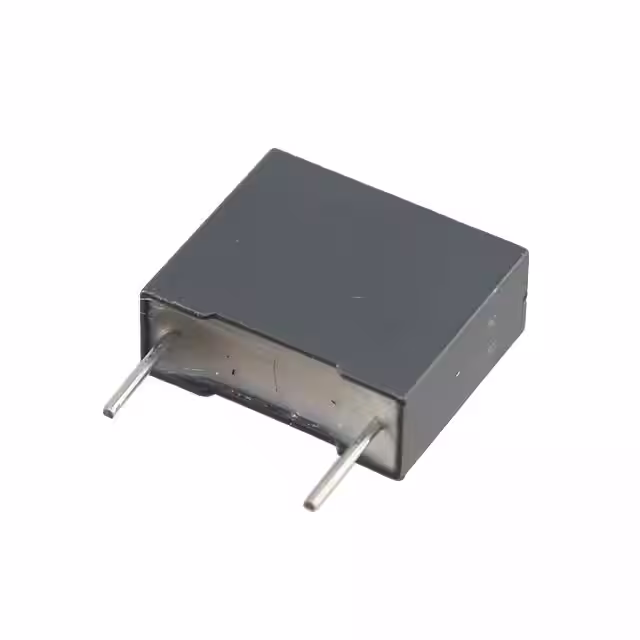

R60MF3100AA6AJCAP FILM 0.1UF 5% 400VDC RADIAL |
800 | - |
|
Datasheet |
Radial | Bulk | R60 | Active | 0.1 µF | ±5% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.512 L x 0.197 W (13.00mm x 5.00mm) | 0.437 (11.10mm) | PC Pins | 0.394 (10.00mm) | Automotive | AEC-Q200 |
|
B32529C1474K000CAP FILM 0.47UF 10% 100VDC RAD |
785 | - |
|
Datasheet |
Radial | Bulk | B3252* - MKT General Purpose | Active | 0.47 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.287 L x 0.177 W (7.30mm x 4.50mm) | 0.374 (9.50mm) | PC Pins | 0.197 (5.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 |
|
B32521C6333JCAP FILM 0.033UF 5% 400VDC RAD |
625 | - |
|
Datasheet |
Radial | Bulk | B3252* - MKT General Purpose | Not For New Designs | 0.033 µF | ±5% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.512 L x 0.157 W (13.00mm x 4.00mm) | 0.354 (9.00mm) | PC Pins | 0.394 (10.00mm) | Automotive; EMI, RFI Suppression | - |
|
F339X122248MDA2B0CAP FILM 2200PF 20% 1KVDC RADIAL |
1,000 | - |
|
Datasheet |
Radial | Bulk | F339X1 | Active | 2200 pF | ±20% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.492 L x 0.157 W (12.50mm x 4.00mm) | 0.394 (10.00mm) | PC Pins | 0.394 (10.00mm) | EMI, RFI Suppression | X1 |
|
R60EF3330AA6AKCAP FILM 0.33UF 10% 100VDC RAD |
921 | - |
|
Datasheet |
Radial | Bulk | R60 | Active | 0.33 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.512 L x 0.157 W (13.00mm x 4.00mm) | 0.358 (9.10mm) | PC Pins | 0.394 (10.00mm) | Automotive | AEC-Q200 |
|
B32521C3224J000CAP FILM 0.22UF 5% 250VDC RADIAL |
775 | - |
|
Datasheet |
Radial | Bulk | B3252* - MKT General Purpose | Active | 0.22 µF | ±5% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.512 L x 0.197 W (13.00mm x 5.00mm) | 0.433 (11.00mm) | PC Pins | 0.394 (10.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 |
|

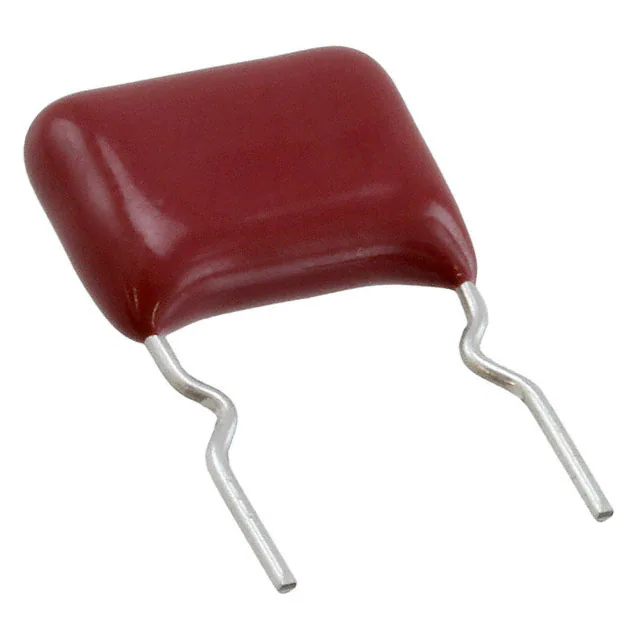

ECW-FD2W154JQCAP FILM 0.15UF 5% 450VDC RADIAL |
423 | - |
|
Datasheet |
Radial | Bulk | ECW-F(D) | Active | 0.15 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.496 L x 0.181 W (12.60mm x 4.60mm) | 0.394 (10.00mm) | PC Pins | 0.394 (10.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
R463I22204001MCAP FILM 0.022UF 20% 630VDC RAD |
252 | - |
|
Datasheet |
Radial | Bulk | R46 | Active | 0.022 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709 L x 0.197 W (18.00mm x 5.00mm) | 0.437 (11.10mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression | X2 |
|
ECW-FD2J104JQCAP FILM 0.1UF 5% 630VDC RADIAL |
232 | - |
|
Datasheet |
Radial | Bulk | ECW-F(D) | Active | 0.1 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.496 L x 0.228 W (12.60mm x 5.80mm) | 0.559 (14.20mm) | PC Pins | 0.394 (10.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
R46KI3220JHM2MCAP FILM 0.22UF 20% 560VDC RAD |
177 | - |
|
Datasheet |
Radial | Bulk | R46 | Active | 0.22 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709 L x 0.236 W (18.00mm x 6.00mm) | 0.693 (17.60mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression | X2 |
|
R75UI118050H4JCAP FILM 1800PF 5% 2KVDC RADIAL |
774 | - |
|
Datasheet |
Radial | Bulk | R75H | Active | 1800 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 442.1 mOhms | -55°C ~ 125°C | Through Hole | 0.709 L x 0.157 W (18.00mm x 4.00mm) | 0.398 (10.10mm) | PC Pins | 0.591 (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 |
|
PHE450MK4390JR05CAP FILM 3900PF 5% 630VDC RADIAL |
410 | - |
|
Datasheet |
Radial | Bulk | PHE450 | Active | 3900 pF | ±5% | 300V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.394 L x 0.157 W (10.00mm x 4.00mm) | 0.315 (8.00mm) | PC Pins | 0.295 (7.50mm) | High Frequency, Switching | - |
|
|
R60EF3680506AKCAP FILM 0.68UF 10% 100VDC RAD |
405 | - |
|
Datasheet |
Radial | Bulk | R60 | Active | 0.68 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.512 L x 0.157 W (13.00mm x 4.00mm) | 0.358 (9.10mm) | PC Pins | 0.394 (10.00mm) | Automotive | AEC-Q200 |
|
R75MD2180Z340JCAP FILM 0.018UF 5% 400VDC RAD |
318 | - |
|
Datasheet |
Radial | Bulk | R75 | Active | 0.018 µF | ±5% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.394 L x 0.157 W (10.00mm x 4.00mm) | 0.358 (9.10mm) | PC Pins | 0.295 (7.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 |
|

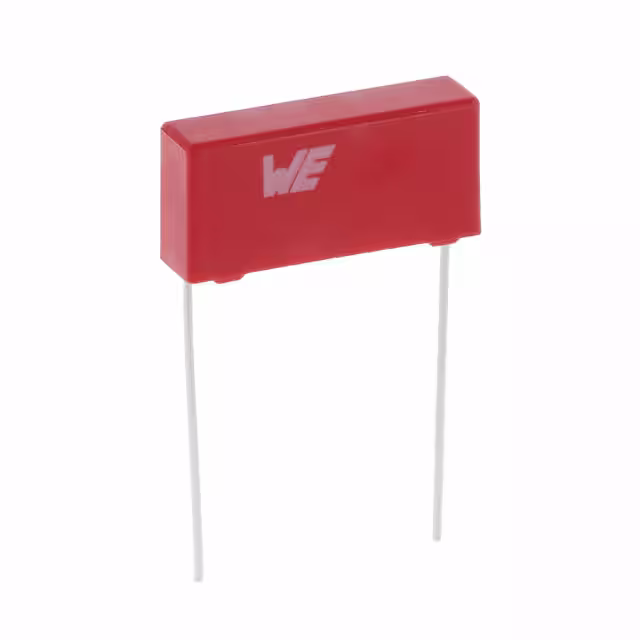

890334026007CAP FILM 0.33UF 10% 310VAC RAD |
195 | - |
|
Datasheet |
Radial | Bulk | WCAP-FTXX | Active | 0.33 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.236 W (26.00mm x 6.00mm) | 0.492 (12.50mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression | X2 |
|
FKP2C022201J00KSSDCAP FILM 0.022UF 10% 63VDC RAD |
144 | - |
|
Datasheet |
Radial | Bulk | - | Active | 0.022 µF | ±10% | 40V | 63V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283 L x 0.283 W (7.20mm x 7.20mm) | 0.335 (8.50mm) | PC Pins | 0.197 (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - |
|
|
R75MD2220Z340JCAP FILM 0.022UF 5% 400VDC RAD |
118 | - |
|
Datasheet |
Radial | Bulk | R75 | Active | 0.022 µF | ±5% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.394 L x 0.157 W (10.00mm x 4.00mm) | 0.358 (9.10mm) | PC Pins | 0.295 (7.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 |
|

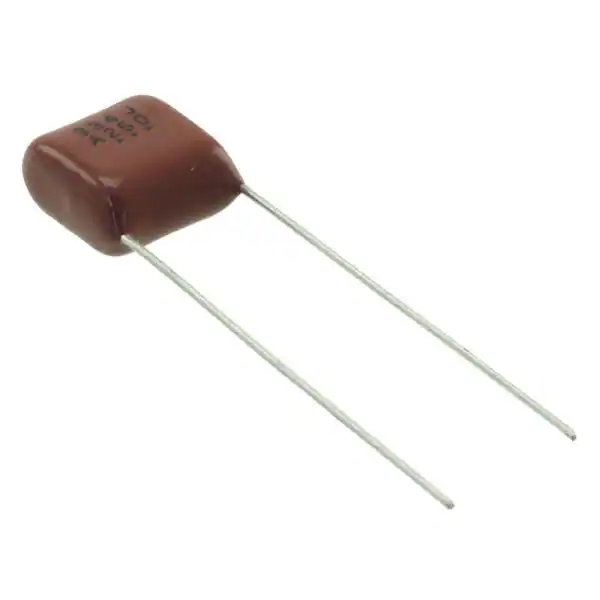

ECQ-E2334JBCAP FILM 0.33UF 5% 250VDC RADIAL |
997 | - |
|
Datasheet |
Radial | Bulk | ECQ-E(B) | Active | 0.33 µF | ±5% | 125V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.406 L x 0.252 W (10.30mm x 6.40mm) | 0.484 (12.30mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - |
|
|
R463I31005001KCAP FILM 0.1UF 10% 630VDC RAD |
647 | - |
|
Datasheet |
Radial | Bulk | R46 | Active | 0.1 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709 L x 0.197 W (18.00mm x 5.00mm) | 0.437 (11.10mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression | X2 |
