Film Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

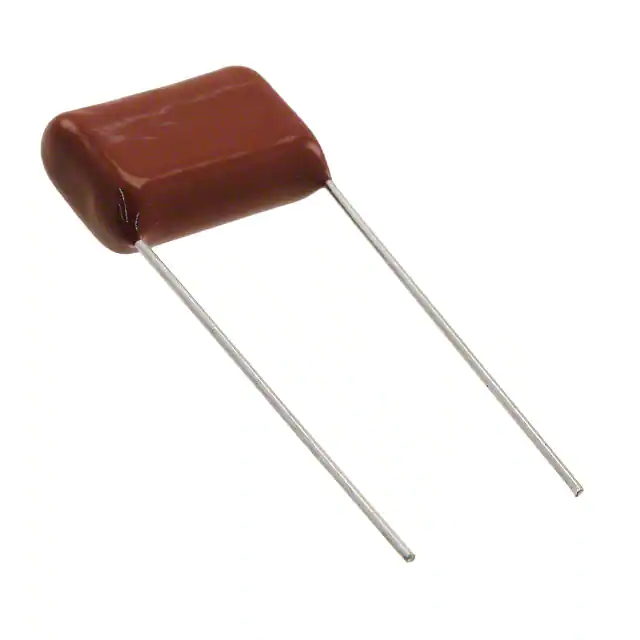

ECW-HA3C223JCAP FILM 0.022UF 5% 1.6KVDC RAD |
371 | - |
|
Datasheet |
Radial | Bulk | ECW-H(A) | Active | 0.022 µF | ±5% | 700V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.811 L x 0.358 W (20.60mm x 9.10mm) | 0.591 (15.00mm) | PC Pins | 0.689 (17.50mm) | High Frequency, Switching | - |
|
R60MI32205040KCAP FILM 0.22UF 10% 400VDC RAD |
863 | - |
|
Datasheet |
Radial | Bulk | R60 | Active | 0.22 µF | ±10% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709 L x 0.197 W (18.00mm x 5.00mm) | 0.437 (11.10mm) | PC Pins | 0.591 (15.00mm) | Automotive | AEC-Q200 |
|

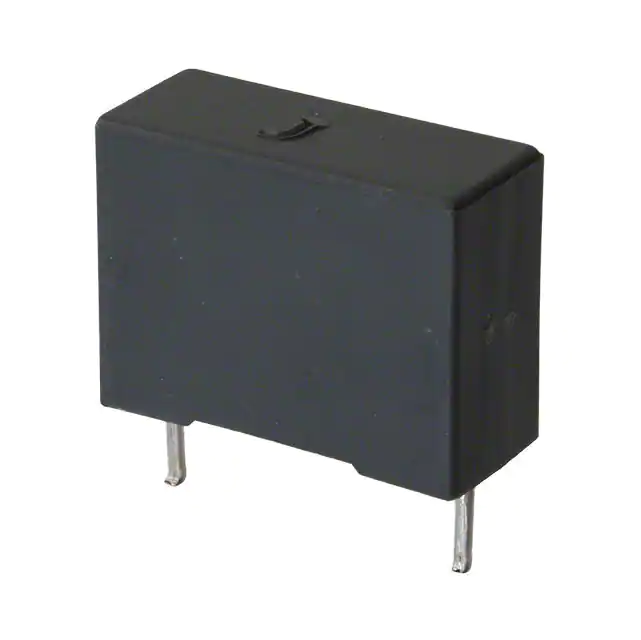

R75QI2470500EJCAP FILM 0.047UF 5% 1KVDC RADIAL |
710 | - |
|
Radial | Bulk | R75 | Active | 0.047 µF | ±5% | 250V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709 L x 0.295 W (18.00mm x 7.50mm) | 0.535 (13.60mm) | PC Pins | 0.591 (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | |
|
F862BS334K310ZV054CAP FILM 0.33UF 10% 630VDC RAD |
108 | - |
|
Datasheet |
Radial | Bulk | F862 | Active | 0.33 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709 L x 0.394 W (18.00mm x 10.00mm) | 0.630 (16.00mm) | PC Pins | 0.591 (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 |
|

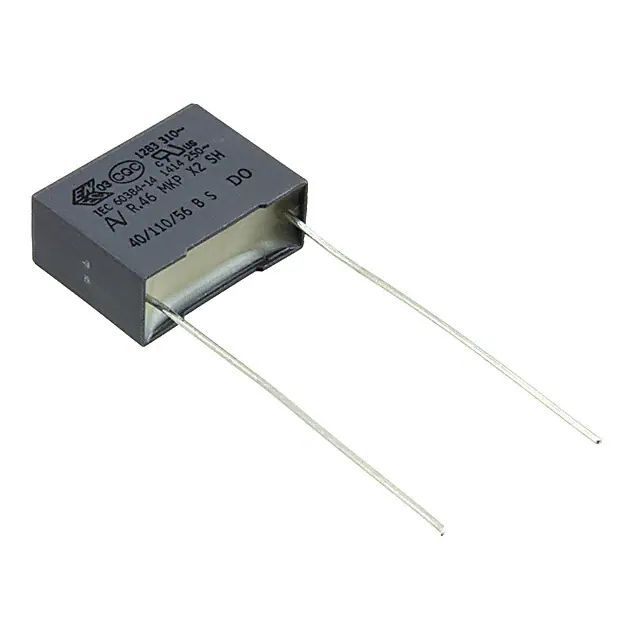

R46KI333040P0MCAP FILM 0.33UF 20% 560VDC RAD |
488 | - |
|
Datasheet |
Radial | Bulk | R46 | Active | 0.33 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709 L x 0.295 W (18.00mm x 7.50mm) | 0.535 (13.60mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression | X2 |
|
MMK10474J63A01L4BULKCAP FILM 0.47UF 5% 63VDC RAD |
335 | - |
|
Datasheet |
Radial | Bulk | MMK | Active | 0.47 µF | ±5% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.512 L x 0.157 W (13.00mm x 4.00mm) | 0.354 (9.00mm) | PC Pins | 0.394 (10.00mm) | General Purpose | - |
|
SMDTC04100QB00KP00CAP FILM 1UF 10% 63VDC 2220 |
500 | - |
|
Datasheet |
2220 (5750 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 100°C | Surface Mount | 0.224 L x 0.201 W (5.70mm x 5.10mm) | 0.189 (4.80mm) | Solder Pads | - | General Purpose | - |
|
223MPW160KCAP FILM 0.022UF 160VDC AXIAL |
919 | - |
|
Datasheet |
Axial | Bulk | MPW | Active | 0.022 µF | ±10% | 90V | 160V | Polypropylene (PP), Metallized | 8.038 Ohms | -55°C ~ 105°C | Through Hole | 0.217 Dia x 0.453 L (5.50mm x 11.50mm) | - | PC Pins | - | DC Link, DC Filtering | - |
|
104MWR100KCAP FILM 0.1UF 10% 100VDC AXIAL |
891 | - |
|
Datasheet |
Axial | Bulk | MWR | Active | 0.1 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.236 Dia x 0.453 L (6.00mm x 11.50mm) | - | PC Pins | - | General Purpose | - |
|
PHE840EX6220MB06R17CAP FILM 0.22UF 20% 760VDC RAD |
792 | - |
|
Datasheet |
Radial | Box | PHE840E | Active | 0.22 µF | ±20% | 300V | 760V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709 L x 0.295 W (18.00mm x 7.50mm) | 0.571 (14.50mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression | X2 |
|
R73UI0150SE03JCAP FILM 150PF 5% 2KVDC RADIAL |
695 | - |
|
Datasheet |
Radial | Bulk | R73 | Active | 150 pF | ±5% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709 L x 0.197 W (18.00mm x 5.00mm) | 0.433 (11.00mm) | PC Pins | 0.591 (15.00mm) | Automotive; DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 |
|

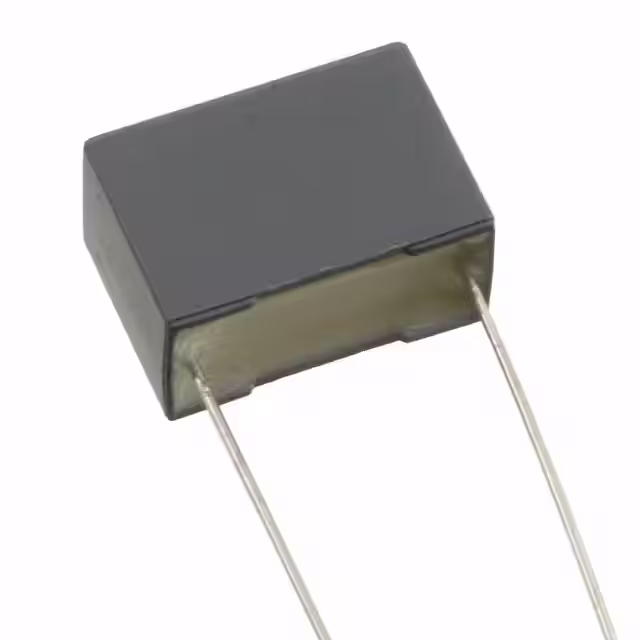

R71MI36804030KCAP FILM 0.68UF 10% 420VDC RAD |
996 | - |
|
Datasheet |
Radial | Bulk | R71 | Active | 0.68 µF | ±10% | 220V | 420V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709 L x 0.335 W (18.00mm x 8.50mm) | 0.575 (14.60mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching; High Pulse, DV/DT; Power Factor Correction (PFC) | - |
|
R71MF32204030KCAP FILM 0.22UF 10% 420VDC RAD |
782 | - |
|
Datasheet |
Radial | Bulk | R71 | Active | 0.22 µF | ±10% | 220V | 420V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512 L x 0.236 W (13.00mm x 6.00mm) | 0.476 (12.10mm) | PC Pins | 0.394 (10.00mm) | High Frequency, Switching; High Pulse, DV/DT; Power Factor Correction (PFC) | - |
|
|
F862BS334K310ZCAP FILM 0.33UF 10% 630VDC RAD |
488 | - |
|
Datasheet |
Radial | Tray | F862 | Active | 0.33 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709 L x 0.394 W (18.00mm x 10.00mm) | 0.630 (16.00mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression | X2 |
|
R46KI347040P0MCAP FILM 0.47UF 20% 560VDC RAD |
175 | - |
|
Datasheet |
Radial | Bulk | R46 | Active | 0.47 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709 L x 0.335 W (18.00mm x 8.50mm) | 0.575 (14.60mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression | X2 |
|
R76UN227050H4JCAP FILM 0.027UF 5% 2KVDC RAD |
115 | - |
|
Datasheet |
Radial | Bulk | R76 | Active | 0.027 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 71 mOhms | -55°C ~ 125°C | Through Hole | 1.043 L x 0.276 W (26.50mm x 7.00mm) | 0.634 (16.10mm) | PC Pins | 0.886 (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 |
|
R79IC3100Z340JCAP FILM 0.1UF 5% 250VDC RADIAL |
835 | - |
|
Datasheet |
Radial | Bulk | R79 | Active | 0.1 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.283 L x 0.236 W (7.20mm x 6.00mm) | 0.437 (11.10mm) | PC Pins | 0.197 (5.00mm) | High Frequency, Switching | - |
|
105MSR250KCAP FILM 1UF 10% 250VDC RADIAL |
561 | - |
|
Datasheet |
Radial | Bulk | MSR | Active | 1 µF | ±10% | 160V | 250V | Polyester, Metallized | 1.768 Ohms | -55°C ~ 125°C | Through Hole | 0.886 L x 0.394 W (22.50mm x 10.00mm) | 0.591 (15.00mm) | PC Pins | 0.787 (20.00mm) | General Purpose | - |
|
|
103MWR400KCAP FILM 10000PF 400VDC AXIAL |
553 | - |
|
Datasheet |
Axial | Bulk | MWR | Active | 10000 pF | ±10% | 200V | 400V | Polyester, Metallized | 141.471 Ohms | -40°C ~ 105°C | Through Hole | 0.197 Dia x 0.453 L (5.00mm x 11.50mm) | - | PC Pins | - | General Purpose | - |
|

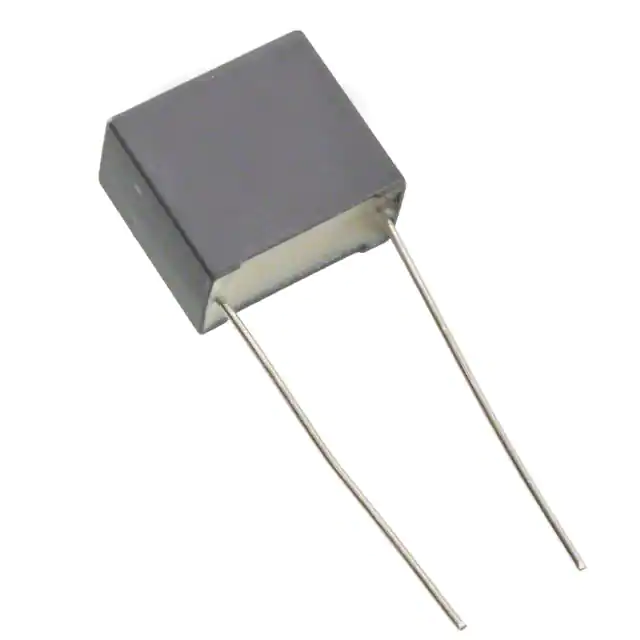

R46KI368040P1MCAP FILM 0.68UF 20% 560VDC RAD |
500 | - |
|
Datasheet |
Radial | Bulk | R46 | Active | 0.68 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709 L x 0.394 W (18.00mm x 10.00mm) | 0.634 (16.10mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression | X2 |
