Film Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R75TI13305030JCAP FILM 3300PF 5% 1.6KVDC RAD |
1,169 | - |
|
Datasheet |
Radial | Bulk | R75 | Active | 3300 pF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 241.1 mOhms | -55°C ~ 105°C | Through Hole | 0.709 L x 0.157 W (18.00mm x 4.00mm) | 0.398 (10.10mm) | PC Pins | 0.591 (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 |
|
ECQ-UAAF183KCAP FILM 0.018UF 10% 275VAC RADI |
1,883 | - |
|
Datasheet |
Radial | Bulk | ECQ-UA | Active | 0.018 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.602 L x 0.197 W (15.30mm x 5.00mm) | 0.472 (12.00mm) | PC Pins | 0.492 (12.50mm) | EMI, RFI Suppression | X2 |
|
|
ECQ-UAAF153KCAP FILM 0.015UF 10% 275VAC RADI |
1,783 | - |
|
Datasheet |
Radial | Bulk | ECQ-UA | Active | 0.015 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.602 L x 0.197 W (15.30mm x 5.00mm) | 0.472 (12.00mm) | PC Pins | 0.492 (12.50mm) | EMI, RFI Suppression | X2 |
|
B32671L0123J000CAP FILM 0.012UF 5% 1KVDC RADIAL |
3,830 | - |
|
Datasheet |
Radial | Bulk | B3267*L* - MKP High Current | Active | 0.012 µF | ±5% | 500V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.512 L x 0.236 W (13.00mm x 6.00mm) | 0.472 (12.00mm) | PC Pins | 0.394 (10.00mm) | High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 |
|
|
B32521N8333M000CAP FILM 0.033UF 20% 630VDC RAD |
3,683 | - |
|
Datasheet |
Radial | Bulk | B3252* - MKT General Purpose | Active | 0.033 µF | ±20% | 200V | 630V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.512 L x 0.236 W (13.00mm x 6.00mm) | 0.472 (12.00mm) | PC Pins | 0.394 (10.00mm) | Automotive; EMI, RFI Suppression | - |
|
SMDTC03220KA00MP00CAP FILM 0.22UF 20% 63VDC 1812 |
9,711 | - |
|
Datasheet |
1812 (4532 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | 0.22 µF | ±20% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 100°C | Surface Mount | 0.189 L x 0.130 W (4.80mm x 3.30mm) | 0.130 (3.30mm) | Solder Pads | - | General Purpose | - |
|
B32933A3334K189CAP FILM 0.33UF 10% 305VAC RAD |
2,987 | - |
|
Datasheet |
Radial | Tape & Reel (TR),Cut Tape (CT) | B3293* - X2 Heavy Duty | Active | 0.33 µF | ±10% | 305V | - | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.043 L x 0.276 W (26.50mm x 7.00mm) | 0.630 (16.00mm) | PC Pins | 0.886 (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 |
|
890324026003CSCAP FILM 0.22UF 10% 275VAC RAD |
1,027 | - |
|
Datasheet |
Radial | Bulk | WCAP-FTX2 | Active | 0.22 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.236 W (26.00mm x 6.00mm) | 0.610 (15.50mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression | X2 |
|
MKS4O111503C00KSSDCAP FILM 1500PF 10% 1KVDC RAD |
6,477 | - |
|
Datasheet |
Radial | Bulk | - | Active | 1500 pF | ±10% | 400V | 1000V (1kV) | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.512 L x 0.157 W (13.00mm x 4.00mm) | 0.354 (9.00mm) | PC Pins | 0.394 (10.00mm) | General Purpose | - |
|
R76PF21805050JFILM, RADIAL, PULSE, DOUBLE META |
1,127 | - |
|
Datasheet |
Radial | Bulk | R76 | Active | 0.018 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | 35 mOhms | -55°C ~ 110°C | Through Hole | 0.512 L x 0.197 W (13.00mm x 5.00mm) | 0.437 (11.10mm) | PC Pins | 0.394 (10.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 |
|
|
ECQ-UAAF822MCAP FILM 0.0082UF 20% 275VAC RAD |
2,000 | - |
|
Datasheet |
Radial | Bulk | ECQ-UA | Active | 8200 pF | ±20% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.602 L x 0.197 W (15.30mm x 5.00mm) | 0.472 (12.00mm) | PC Pins | 0.492 (12.50mm) | EMI, RFI Suppression | X2 |
|
|
ECQ-UAAF124MCAP FILM 0.12UF 20% 275VAC RADIA |
1,978 | - |
|
Datasheet |
Radial | Bulk | ECQ-UA | Active | 0.12 µF | ±20% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689 L x 0.236 W (17.50mm x 6.00mm) | 0.531 (13.50mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression | X2 |
 Series.jpg)
|
ECW-FE2W154JCAP FILM 0.15UF 5% 450VDC RADIAL |
1,852 | - |
|
Datasheet |
Radial | Bulk | ECWFE | Active | 0.15 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512 L x 0.197 W (13.00mm x 5.00mm) | 0.413 (10.50mm) | PC Pins | 0.394 (10.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
R75RF15605040JCAP FILM 5600PF 5% 1.25KVDC RAD |
1,454 | - |
|
Datasheet |
Radial | Bulk | R75 | Active | 5600 pF | ±5% | 450V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 142.1 mOhms | -55°C ~ 105°C | Through Hole | 0.512 L x 0.197 W (13.00mm x 5.00mm) | 0.437 (11.10mm) | PC Pins | 0.394 (10.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 |
|
R82MC2470AA60JCAP FILM 0.047UF 5% 400VDC RAD |
1,168 | - |
|
Datasheet |
Radial | Bulk | R82 | Active | 0.047 µF | ±5% | 160V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283 L x 0.197 W (7.20mm x 5.00mm) | 0.398 (10.10mm) | PC Pins | 0.197 (5.00mm) | Automotive | AEC-Q200 |
|

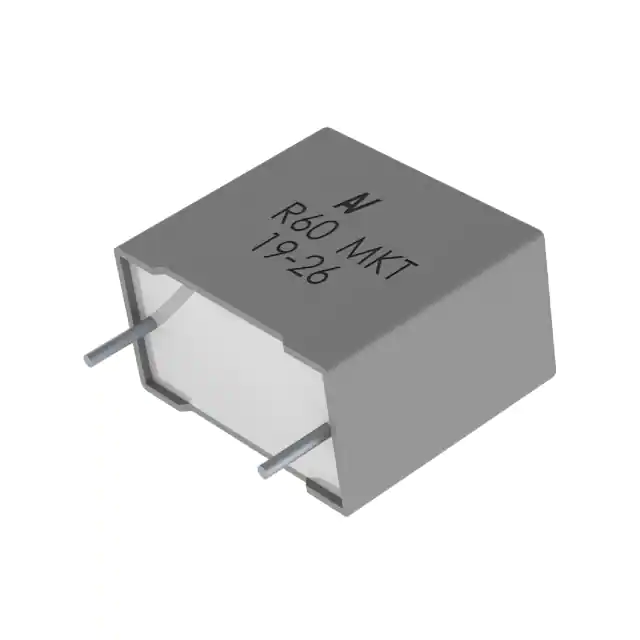

R60MF2220506AJCAP FILM 0.022UF 5% 400VDC RAD |
1,054 | - |
|
Datasheet |
Radial | Box | R60 | Active | 0.022 µF | ±5% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | - | - | PC Pins | 0.394 (10.00mm) | Automotive | AEC-Q200 |
|
ECH-U1473JC9CAP FILM 0.047UF 5% 100VDC 2416 |
2,069 | - |
|
Datasheet |
2416 (6041 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(C) | Active | 0.047 µF | ±5% | 40V | 100V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.236 L x 0.161 W (6.00mm x 4.10mm) | 0.102 (2.60mm) | Solder Pads | - | General Purpose | - |
|
|
ECQ-UAAF184MCAP FILM 0.18UF 20% 275VAC RADIA |
1,986 | - |
|
Datasheet |
Radial | Bulk | ECQ-UA | Active | 0.18 µF | ±20% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689 L x 0.295 W (17.50mm x 7.50mm) | 0.571 (14.50mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression | X2 |
|
|
ECQ-UAAF153MCAP FILM 0.015UF 20% 275VAC RADI |
1,884 | - |
|
Datasheet |
Radial | Bulk | ECQ-UA | Active | 0.015 µF | ±20% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.602 L x 0.197 W (15.30mm x 5.00mm) | 0.472 (12.00mm) | PC Pins | 0.492 (12.50mm) | EMI, RFI Suppression | X2 |
|
|
ECQ-UAAF823KCAP FILM 0.082UF 10% 275VAC RADI |
1,724 | - |
|
Datasheet |
Radial | Bulk | ECQ-UA | Active | 0.08 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689 L x 0.197 W (17.50mm x 5.00mm) | 0.492 (12.50mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression | X2 |
