Film Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PHE426KJ5220JR05CAP FILM 0.022UF 5% 400VDC RAD |
6,828 | - |
|
Datasheet |
Radial | Box | PHE426 | Active | 0.022 µF | ±5% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.283 L x 0.138 W (7.20mm x 3.50mm) | 0.315 (8.00mm) | PC Pins | 0.197 (5.00mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - |
|
ECQ-E2223JBCAP FILM 0.022UF 5% 250VDC RAD |
1,588 | - |
|
Datasheet |
Radial | Bulk | ECQ-E(B) | Active | 0.022 µF | ±5% | 125V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.311 L x 0.169 W (7.90mm x 4.30mm) | 0.323 (8.20mm) | PC Pins | 0.197 (5.00mm) | General Purpose | - |
|
B32529C3683J000CAP FILM 0.068UF 5% 250VDC RAD |
3,942 | - |
|
Datasheet |
Radial | Bulk | B3252* - MKT General Purpose | Active | 0.068 µF | ±5% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.287 L x 0.177 W (7.30mm x 4.50mm) | 0.374 (9.50mm) | PC Pins | 0.197 (5.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 |
|
FKS2F014701A00KSSDCAP FILM 4700PF 10% 250VDC RAD |
3,690 | - |
|
Datasheet |
Radial | Bulk | - | Active | 4700 pF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET) | - | -55°C ~ 100°C | Through Hole | 0.283 L x 0.098 W (7.20mm x 2.50mm) | 0.256 (6.50mm) | PC Pins | 0.197 (5.00mm) | High Pulse, DV/DT | - |
|
R46KI3100JPM1KCAP FILM 0.1UF 10% 560VDC RADIAL |
2,206 | - |
|
Datasheet |
Radial | Bulk | R46 | Active | 0.1 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709 L x 0.236 W (18.00mm x 6.00mm) | 0.437 (11.10mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression | X2 |
|

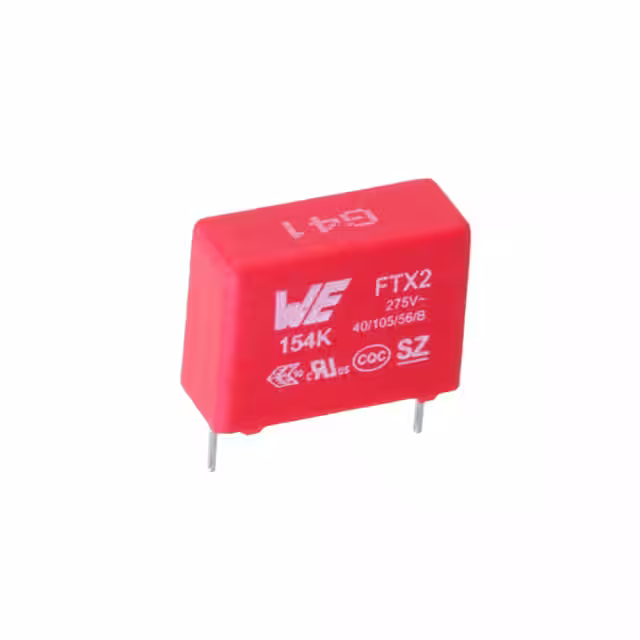

890324024001CSCAP FILM 0.15UF 10% 275VAC RAD |
2,149 | - |
|
Datasheet |
Radial | Bulk | WCAP-FTX2 | Active | 0.15 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.591 L x 0.236 W (15.00mm x 6.00mm) | 0.472 (12.00mm) | PC Pins | 0.492 (12.50mm) | EMI, RFI Suppression | X2 |
|
R66MD2470AA7AKCAP FILM 0.047UF 10% 400VDC RAD |
1,168 | - |
|
Datasheet |
Radial | Bulk | R66 | Active | 0.047 µF | ±10% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.394 L x 0.157 W (10.00mm x 4.00mm) | 0.358 (9.10mm) | PC Pins | 0.295 (7.50mm) | Automotive | AEC-Q200 |
|
B32932A3334K189CAP FILM 0.33UF 10% 305VAC RAD |
2,797 | - |
|
Datasheet |
Radial | Tape & Reel (TR),Cut Tape (CT) | B3293* - X2 Heavy Duty | Active | 0.33 µF | ±10% | 305V | - | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.709 L x 0.354 W (18.00mm x 9.00mm) | 0.689 (17.50mm) | PC Pins | 0.591 (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 |
|
FKP2D003301D00KSC4CAP FILM 330PF 10% 100VDC RAD |
29,424 | - |
|
Datasheet |
Radial | Bulk | - | Active | 330 pF | ±10% | 63V | 100V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283 L x 0.177 W (7.20mm x 4.50mm) | 0.236 (6.00mm) | PC Pins | 0.197 (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - |
|
MKS4O111002B00MSSDCAP FILM 1000PF 20% 1KVDC RAD |
14,070 | - |
|
Datasheet |
Radial | Bulk | - | Active | 1000 pF | ±20% | 400V | 1000V (1kV) | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.394 L x 0.118 W (10.00mm x 3.00mm) | 0.335 (8.50mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - |
|
MKP2J013301B00KSSDCAP FILM 3300PF 10% 630VDC RAD |
10,930 | - |
|
Datasheet |
Radial | Bulk | - | Active | 3300 pF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.283 L x 0.118 W (7.20mm x 3.00mm) | 0.295 (7.50mm) | PC Pins | 0.197 (5.00mm) | Automotive; High Frequency, Switching | AEC-Q200 |
|
|
MKP2G016801B00KSSDCAP FILM 6800PF 10% 400VDC RAD |
9,002 | - |
|
Datasheet |
Radial | Bulk | - | Active | 6800 pF | ±10% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.283 L x 0.118 W (7.20mm x 3.00mm) | 0.295 (7.50mm) | PC Pins | 0.197 (5.00mm) | Automotive; High Frequency, Switching | AEC-Q200 |
|
|
MKP2G011501B00KSSDCAP FILM 1500PF 10% 400VDC RAD |
4,758 | - |
|
Datasheet |
Radial | Bulk | - | Active | 1500 pF | ±10% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.283 L x 0.118 W (7.20mm x 3.00mm) | 0.295 (7.50mm) | PC Pins | 0.197 (5.00mm) | Automotive; High Frequency, Switching | AEC-Q200 |
|
|
MKP2J011001B00KSSDCAP FILM 1000PF 10% 630VDC RAD |
2,289 | - |
|
Datasheet |
Radial | Bulk | - | Active | 1000 pF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.283 L x 0.118 W (7.20mm x 3.00mm) | 0.295 (7.50mm) | PC Pins | 0.197 (5.00mm) | Automotive; High Frequency, Switching | AEC-Q200 |
-2,80mm.jpg)
|
CB037E0104JBACAP FILM 0.1UF 5% 100VDC 1812 |
4,282 | - |
|
Datasheet |
1812 (4532 Metric) | Tape & Reel (TR),Cut Tape (CT) | CB | Active | 0.1 µF | ±5% | 63V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.185 L x 0.126 W (4.70mm x 3.20mm) | 0.118 (3.00mm) | Solder Pads | - | General Purpose | - |
|
B81123C1472M289CAP FILM 4700PF 20% 500VAC RAD |
10,880 | - |
|
Datasheet |
Radial | Tape & Box (TB) | B81123* - Y1 | Active | 4700 pF | ±20% | 500V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709 L x 0.354 W (18.00mm x 9.00mm) | 0.689 (17.50mm) | PC Pins | 0.591 (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y1 |
|
ECQ-E4273KFCAP FILM 0.027UF 10% 400VDC RAD |
714,292 | - |
|
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.027 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.406 L x 0.217 W (10.30mm x 5.50mm) | 0.354 (9.00mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - |
|
B32520E6473K000CAP FILM 0.047UF 10% 400VDC RAD |
29,449 | - |
|
Datasheet |
Radial | Bulk | B3252* - MKT General Purpose | Active | 0.047 µF | ±10% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.394 L x 0.157 W (10.00mm x 4.00mm) | 0.335 (8.50mm) | PC Pins | 0.295 (7.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 |
|
|
FKS2F021001B00KSSDCAP FILM 10000PF 10% 250VDC RAD |
10,550 | - |
|
Datasheet |
Radial | Bulk | - | Active | 10000 pF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET) | - | -55°C ~ 100°C | Through Hole | 0.283 L x 0.118 W (7.20mm x 3.00mm) | 0.295 (7.50mm) | PC Pins | 0.197 (5.00mm) | High Pulse, DV/DT | - |
|
PHE840MA5100MA01R17CAP FILM 10000PF 20% 760VDC RAD |
1,439 | - |
|
Datasheet |
Radial | Bulk | PHE840M | Active | 10000 pF | ±20% | 275V | 760V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.512 L x 0.157 W (13.00mm x 4.00mm) | 0.354 (9.00mm) | PC Pins | 0.394 (10.00mm) | EMI, RFI Suppression | X2 |
